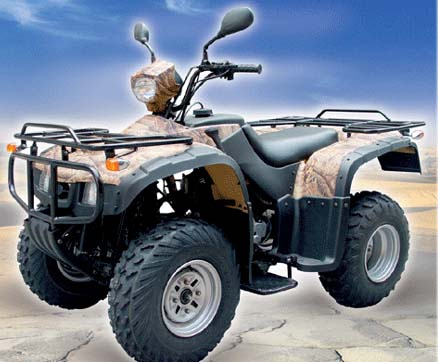

EEC ATV (KL200ST-EC)

Specifications

Prod Model:	KL200ST-EC

Product Description

This is EEC approved ATV, Every unit with a COC certificate document, So it can be registered as ON-ROAD Vehicle.

L x W x H: 1880 x 1040 x 1140 mm
Wheel Base: 1160 mm
Dry Weight: 240 Kg
Max Load Capacity: 165 Kg
Seat Height: 810 mm
Min Turning Radius: 2900 mm
Ground Clearance: 220 mm

Engine Type: Single Cylinder, 4-Strokes. AirCooled
Displacement: 193.2 cc
Maximum Power: 10.5Kw@7500rpm
Maximum Torque: 14N.M@6500rpm

Transmission System: Shaft Drive
Transmission: 5-Speeds + 1 REVERSE
Starting System: Electric
Brake(Front/Rear): Disc/Drum
Tyre, Front: AT 23 X 7-10
Tyre, Rear: AT 22 X 10-10
Ignition Type: C.D.I
Fuel Tank Capacity: 12 L
Front Suspension: Independent A-Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah

Rider Capacity: 2 Persons
