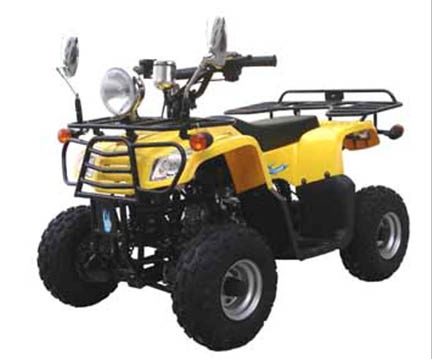

EEC ATV 90cc (PH-90EA14)

Specifications

Prod Model:	PH-90EA14

Product Description

EEC 90cc

Engine: 90cc, single cylinder, 4 stroke, air cooled
Lengthxwidthxheight: 1230x810x900mm
Load: 100kg
Max. Speed: 65km/h
Wheel base: 800mm
Seat height: 600mm
Ground clearance: 90mm
Tire Size: 145/70-6(F) 145/70-6 (R )
Max. Power(Kw/rpm): 4.0kw/7500-8000r/min
Max. Torque(Nm/rpm): 5.6N. M/5000-6000rpm
Transmission mode: Chain
Starting system: Electric starting
Climbing capacity: ≥17
Ignition: CDI
Fuel tank capacity: 2L
N.W./G.W.: 82/96kg
Carton size: 1160 x 810 x 660mm
Container: 42pcs/20'GP; 84pcs/40'GP; 112pcs/40'HQ
