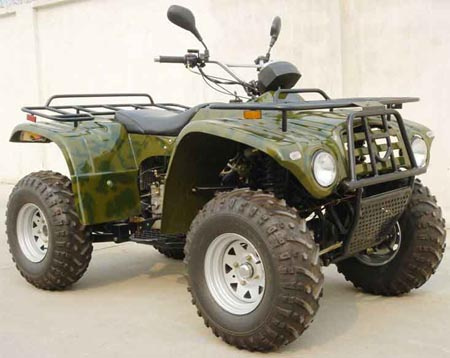

EEC ATV 650CC (MH650ST 4WD)

Specifications

Prod Model:	BR650ST 4WD

Product Description

Model: MH650ST
Engine: 4-stroke, 2-cylinder
Displacement: 644ml
Valve System: Cam Shaft, Top Position
Compression Ratio: 8.4: 1
Bore* Stroke (mm): 76* 71
Cooling System: Water Cooled
Max Power: 23.1/4500 (17kw)
Max Torque (n. M/r/min): 44/(2700-3300)
Ignition: Battery Ignition, Vacuum Centrifuge
Lubrication: Pressure Splash
Starting: Electric
Battery: 1pcs, 28 Ah, 12 Volts
Fuel Tank Capacity (gallon): 2.64
Final Drive: 4 * 4 Wheel Driving
Transmission: Shaft Driving/ Reverse Gear, N/1/2/3/4,
Reverse Gear: W/ Reverse
Brake: F: Disc/ R: Drum
Tire Sizef: 25 * 10- 12, R: 25* 10-12
Front Suspension: Independent Suspention
Rear Suspension
Wheelbase Wheel Distance: 1030mm
Axle Distance: 1530mm
Max. Output Power: 17.0kw/4500rpm
Max. Speed: 60km/h
Max. Loading: 100kg
Dry Weight: 420kg
Economic Fuel Consumption: 2.9l/100km
L*W* H: 2250 * 1260 *1120 (mm)/ 88.6 *49.6* 44.1 (inch)
Seat Height: 9500mm
Fuel Tank Volume: 12.0 L
Min. Ground Clearance: 240mm
Colours: Red, Blue, Silver, Camouflage
Packing Material: Iron Frame
