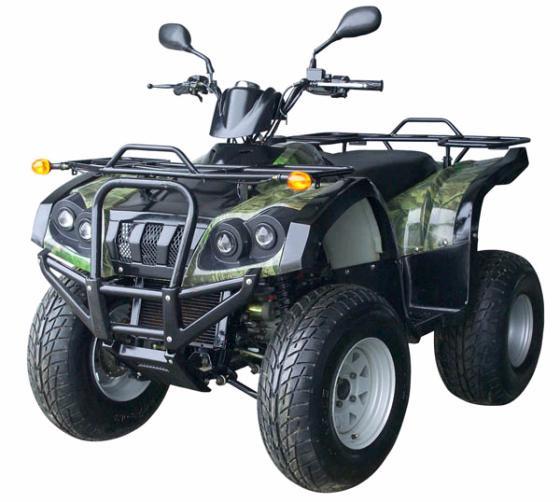

EEC ATV (260EA11)

Specifications

Prod Model:	PH-260EA11

Product Description

EEC ATV (260EA11)
Engine type: 1-cylinder 4-strock, water-cooled
Engine displacement: 255cc
Max Power: 12.5KW/7500RPM
Ignition: DC-CDI
Starting: Electric
Drive: Shaft
Max speed: 55km/h
Transmission: Front-middle-reverse gear
Front suspension: MacPherson strut with 3in travel
Rear suspension: Progressive rate swing arm with 7in travel
Front brake: Dual hydraulic discs
Rear brake: Single lever hydraulic disc
Front Tire: AT 24*8-12
Rear Tire: AT 24*11-10
Length: 2096mm
Width: 1170mm
Height: 1170mm
Wheel Base: 1265mm
Ground Clearance: 190mm
Dry Weight: 355kg
Fuel capacity: 7.0L/1.85US gal
EEC Approved
