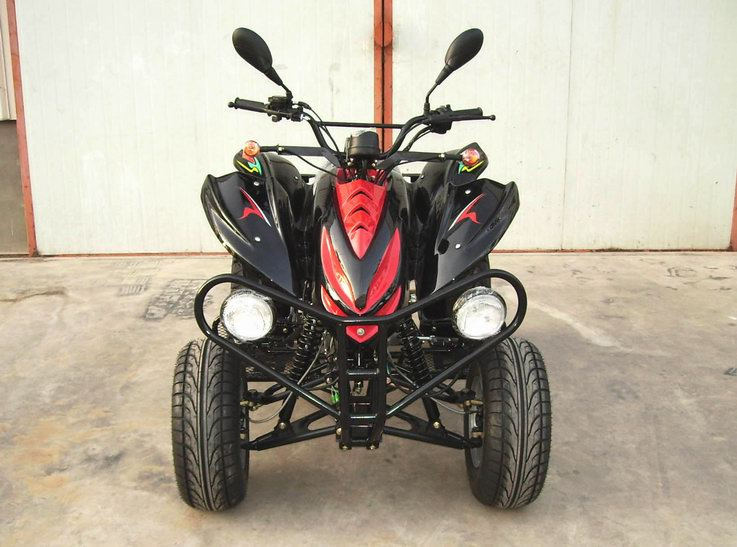

EEC ATV (250EA12)

Specifications

Prod Model:	PH-250EA12

Product Description

EEC ATV (250EA12)
NO Item Description
1. Dimension (L*W*H) 1900mm*1050mm*1160mm
2. Proper Mass of Empty Vehicle 230kg
3. Max speed ≥75 km/h
4. Climbing Ability ≥20°
5. Distance between axles 1255mm
6. Distance between front wheels 860mm
7. Distance between rear wheels 780mm
8. Ground clearance 150mm
9. Specification of Front Wheel 22 8-10
10. Specification of Rear Wheel 22 10-10
11. Type of Engine Double cylinder four stroke
12. Cylinder dia...χ Working stroke 53mmχ 53mm
13. Efficient Capacity 234ml
14. Rated Power and Rotate Speed 12.23KW/8000r/min
15. Max Torque and Rotate Speed 15.9N. M/6500r/min
16. Compressing Ratio 9.2:1
17. Transmission Two class four chain
18. Gearshift Mode Five Speed(reverse)
19. Starting System Electric Starting
20. Cooling System Air cooling
21. Fuel tank 7.5L
22. Package measure(L*W*H) 1870*1150*1040
23. Gross weight 250KG
