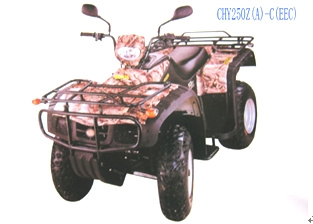

EEC ATV 250CC

Specifications

Prod Model:	CHY250Z(A)-C (Suv)

Product Description

ENGINE:
Engine Type: Coordinate double tanks, 4-stroke, manual clutch
Bore and Stroke: 2-53 x 53
Ignition: C.D.I.
Starter: Electric recoil backup
Piston Displacement: 233.9(ml)

DRIVE TRAIN:
Graded System: Speed adjustment
Driveline: Shaft drive

CHASSIS/SUSPENSION/BRAKES
Front Suspension: Single arm.
Front / Rear Brakes: Disc/drum
Front Tires: 23x7-10
Rear Tires: 22x10-10
Maximum Power (kw/r/min): 13/8000
Maximum Torque: 16/6500

DIMENSIONS:
Length/Width/Height: 1940 x1050 x 1160(mm)
Axle Base: 1160(mm)
Wheel Base (Front/Rear): 880/770(mm)
Dry Weight: 213(kg)
Max Load: 165(kg)
Seat Height: 810(mm)
Compression Ratio: 9.2: 1
Minimum Turning Radius: 2900(mm)
Minimum Ground Clearance: 155(mm)
QTY/Container: 12units/20GP, 36units/40HQ

OTHER:
Battery: 12V-14AH
Fuel Tank Capacity: 12L
