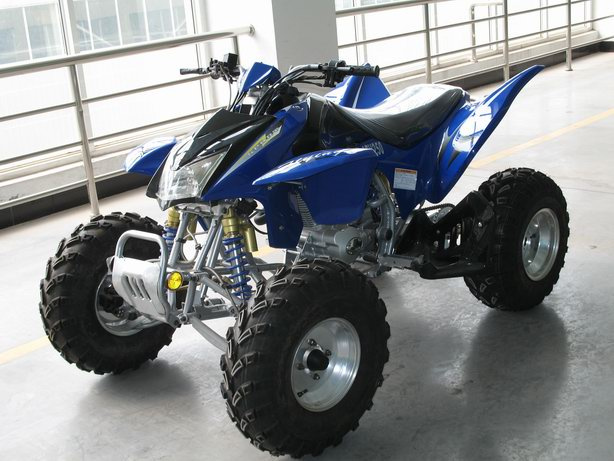

EEC ATV (250A16-W)

Specifications

Prod Model:	PH-250A16-W

Product Description

EEC ATV (250A16-W)
TYPE
Single cylinder\4 stroke\water cooled\reverse inside
Braking system: Front/rear hydraulic brake
Max power(kw/r/min: ) 12 / 6500± 500
Transmission: Chain, rear driving
Max torque(N. M/r/min) 18.5/ 5500± 500
Front wheel type: AT23? 7-10
Cylinder radius? Space: 67? 65
Rear wheel type: AT22? 10-10
Displacement(ml): 230
Seat height(mm): 830
Compress rate: 9.0: 1
Min turning radius(mm): 2700
Tank capacity(L): 1± 0.1
Min ground clearance(mm): 175
Lubricate: Pressure&splash lubricate
Oil case capacity(L): 9.8
Ignition: C. D. I
Locking system: Mechanical lock
Gear shaft: 4 gear/1 reverse, neutral
Battery: 12V14Ah
Clutch: Manual wet multi-piece
Max loading ability(kg): 150
Reverse: Reverse inside
Seat number: 1person
Starting: Electric starting
Fuel consume(L/100km): 5
Cool: Air cooled
Axle base(mm): 1260
Packing:
Front wheel base(mm): 870
Packing type: Plastic bag+ferric bracket+paper case
Rear wheel base(mm): 930
Packing quantity(20GQ/40GQ/40HQ): 14/28/42 set max speed(km/h)
Max velocity (km/h): 90
Knocked-down parts: Rear elbow, tyre
Max climbing degree(° ): 60
Packing MET(mm): 1680? 960? 880
Measurement(mm): 1880? 1140? 1120
G. W(kg): 218
N. W(kg): 180
