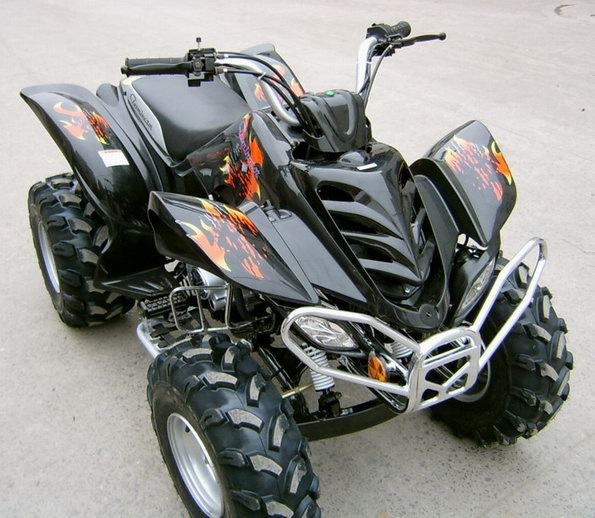

EEC ATV (150S-6B)

Specifications

Prod Model:	PH-150S-6B

Product Description

EEC ATV (150S-6B)

110cc/125cc/150cc/200cc are available. The following is specs of 150cc

PH-150S-6B Raptor

Specifications:

1. Engine Type: 150CC 4 stroke Air Cooled Fully-Automatic

2. Power: 5.2KW/7500r/min

3. Maximum Torque: 7.0N. M/7500r/min

4. Max Speed: ≥60Km/h

5. Ground Clearance: 130mm

6. Transmission System: Drive shaft with reverse

7. Brake(Front/Rear): Disk-brake

8. Starting System: Electric

9. Front Suspension: Swing arm Suspension

10. Rear Suspension: Complete Suspension

11. N. W/G. W: 125/160kg

12. Carton Dimensions: 1470*835*770mm

13. Quantity of loading: 31pcs/20? FCL; 64pcs/40? FCL; 66pcs/40? HQ

PH-150S-6A: Chain drive with Reverse

PH-150S-6B: Shaft drive with Reverse

PH-150S-6C: GY6 Chain drive with reverse and Gearbox
