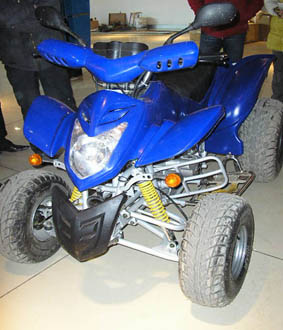

EEC ATV (150EA10)

Specifications

Prod Model:	PH-150EA10

Product Description

EEC ATV (150EA10)
Code: PH-150EA10
Engine type: 1-cylinder 4-strock, air-cooled
Engine displacement: 149cc
Max Power: 8.8KW/ 8500 r/min
Max Torque (r/min): 10.0Nm/6500r/min
Compression Ratio: 9.2: 1
Lubrication: Pressure and Splash
Carburetor: PZ27
Ignition: CDI
Starting: Electric
Drive: Chain, 2WD
Max speed: 55kms/h
Transmission: 5-speed manual clutch with reverse
Front suspension: Double A-ARM
Rear suspension: Swing ARM
Front brake: Dual hydraulic discs
Rear brake: Hydraulic discs
Parking brake: Rear wheel
Front Tire: 180/80-8 (On road)
Rear Tire: 255 / 65-8 (On road)
Length: 1600mm/63.0in
Width: 1000mm/39.4 in
Height: 1060mm/41.7in
1060mm/41.7in: 720mm/28.3in
Wheel Base: 1100mm/43.3in
Ground Clearance: 130mm/5.1in
Dry Weight: 160kg/352Ibs
Fuel capacity: 7.0L/1.85US gal
Max Speed: 65kms/h
Light: EEC standard
