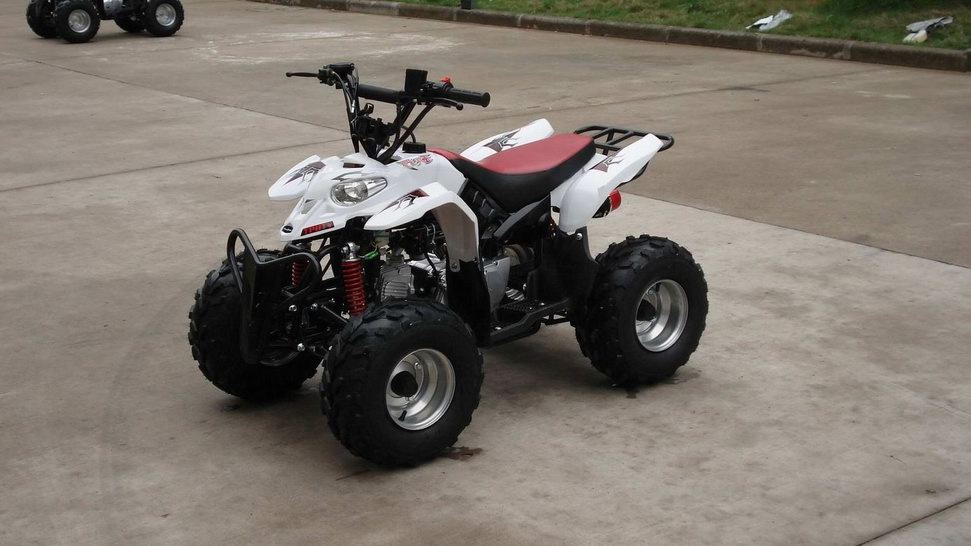

EEC ATV (110S-9)

Specifications

Prod Model:	PH-110S-9

Product Description

EEC ATV (110S-9)
Engine: 110cc 4 stoke
L*W*H: 1360? 820? 860(mm)
Seat height: 590(mm)
Wheelbase: 830(mm)
Track: 630(mm)
Displacement: 90cc
Engine: 147fmhf
Start system: Under-Engine electric start
Bore? Stroke: 47? 49.5(mm)
Compression ratio: 8.8: 1
Gearbox: Automatic
Max power(k/w): 4.0kw/7500-8000r/min
Max torque(n/m): 5.6kw/5000-6000r/min
Tank capacity: 3.2L
Transmission: Chain
Ignition system: CDI
Accumulator weight: 12V5Ah exempt maintenance
Clutch: Automatic
Front/rear brake: Drum/disc
Min ground clearance: 120mm
Carburetor: PZ19 manual choke
Front/rear Tyre: 16/8-7 / 16/8-7
Front light: 12V6W
G. W. /N. W.: 94/132kg
