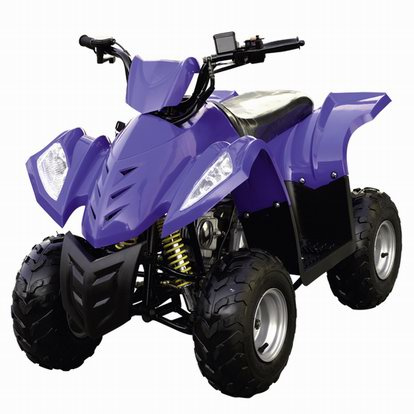

EEC ATV (110S-3)

Specifications

Prod Model:	PH-110S-3

Product Description

EEC ATV (110S-3)

Displacement: 4 stroke, 49cc / 70cc /90cc/110cc
Max power: 3.75 KW / 8500 rpm
Max torque: 4.5 NM /6500 rpm

Cooling: Air cooling
Lubrication: Mix fuel
Ignition: CDI
Starting: Electric starter
Final drive: Chain
Transmission: 1- speed.
Front / rear suspension: Double A- ARM / swing arm
Rear brake: Hydraulic disc
Parking: Rear Brake
Front tire / rear tire: 145/ 7-6 / 145/7-6
L*W*H 1160 *660*770mm / 45.7*26*30.3 in
Seat height: 550 mm ( 21.6 in )
Wheel base: 805 mm ( 31.7 in )
Turn radius: 1500 mm
Ground clearance: 95 mm ( 3.74 in )
Dry weight: 60 kgs
Max speed: 45 km / h
Max climb: 35 degree
Electrical battery: 12V 5.5 AH
N. W.: 90kg
G. W.: 100kg
