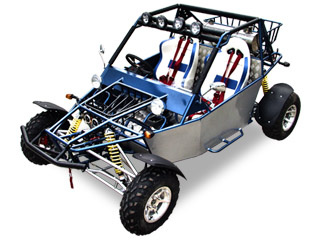

EEC Approved Go Kart with 70HP (NY1100-2B)

Specifications

Prod Model:	NY1100-2A

Product Description

Specification

Model: NY1100-2B(EEC, EPA AND CARB)

Engine Information:
Enginr Size: CHERRY ENGINE, Electric Fuel Injection
Displacement: 1050ml, Gasoline engine
Max. Power: 50kw(5500+/-50rpm)
Max. Torque: 90N. M(3500--4000rpm)
Max. Speed: 120 km/h, 62.1mile/h
Climbing Capacity ≤45 temperature
Cooling Water Cooled
Carburation: 4 Cylinder, 4 stroke
Ignition key
Starter electric
Fuel tank: 30L/5.7Gallon Safety tank
Electric: 12V 32Ah Battery, 12V 55W headlight, 12V 5W Tail lights
Instrucmentation Speedmeter, Odometer, Fuel gauge, Tachometer

Drive Train:
Transmission Manual
Steering Rack and Pinion: 2.5 Turn lock to lock
Gears/patten: 4 forward gear+Reverse
Driveline shaft
Gear Ratio: 1st-3.909, 2nd-2.800, 3rd-1.800, 4th-1.036, R-3.583
Main Reduction Ratio: 4.412
Lubrication Forced&Splash, 2.8L, (Type: SE15W/40 Summer, SE10W/30 Winter)
Clutch Hydraulic, diaphragm spring

Chassis and Suspension
Front suspension Dual Wishbone Swing arm(independent)
Rear suspension Trail Arm(independent)
Shock Absorber Gas Coil Cover Shocks

Brake, Rim and Tire, Winch
Front Brake Hydraulic Disc
Rear Brake Hydraulic Disc
Front tire, Rim 25*8-10, 12" Aluminum Rim 200kpa
Rear tire, Rim 25*8-12, 12" Aluminum rim 200kpa
Winch 3000 Pounds Big power Winch
Seat Adjustable, Bucket type, Head Rest, 5 Point Safety Harness

Tubing and Paint
Tube 32mm steel tube, 2mm gauge

Dimensions, Other Specs:
OA dimension L*W*H: 2930mm*1710mm*1640mm
Wheelbase: 2230mm
Frontwheel Track: 1505mm
Rearwheel Track: 1455mm
Min Ground Clearance: 303mm
Climbing Capacity: 10 temperature
Min Turning Radius: 4.5m
Braking length: 7m/30km/h
Max/Loading Capacity: 175kg
Min Fuel Consumption Ratio: 295g/(kw. H)

Box Dimensions:
Carton size L*W*H
Gross weight: 1156.9lbs/523kg

Shipping Information:
Units per 20''GP 6pcs
Units per 40''GP 16pcs
