Specifications
Prod Model: |
HD650ST-B |
Export Markets: Global: |
High Performance & Quality |
Transmission Type: |
Manual |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
110CC |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Certification: |
ISO9001 |
Product Description

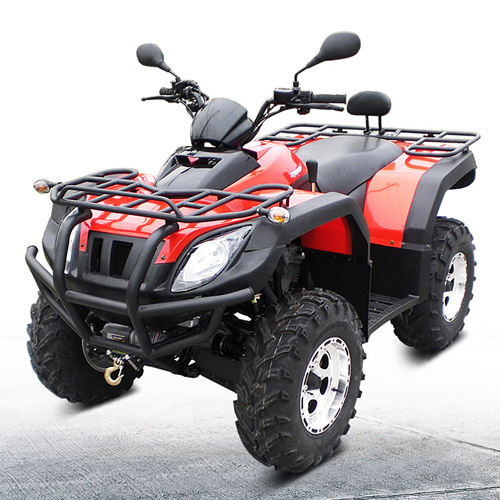

Super quality UTV with 500CC, 4-stroke, single cylinder, air-cooling
1) Engine type: Single Cylinder,4-stroke,liquid-cooled ,4-valve2) Bore and stroke :87.5mm*82mm3) Displacement: 493cc
4) Max Torque: 38.8N.M/5500rpm
5) Max Power: 24kw/6500rpm
6) Compression ration: 10.2: 1
7) Ignition system: CDI
8) Oil capacity: 13L
9) Max speed: >75km/h
10) Turning angle: 30°
11) Starter system: Electric/ Hand
12) Transmission: CVT,R/N/L/H
13) Brake Type: Dual disc brake R: Single disc brake
14) 4*4 system: On-command 2WD/4WD and Command front diffential lock
15) Wheelbase: 1300mm
16) Ground clearance:240mm 17) Tires (front / rear): 25 x 8-12 / 25 x 10-1218) Dry Weight:365KGS 19) Product dimension: 2160*1180*1200 20)
Carton dimension(Don't take down wheel): 2200*1230*1050
Carton dimension( Take down wheel): 2280*1180*8402
Container loading qty :Qty/20FT: 10 unitsQty/40HQ: 30units
