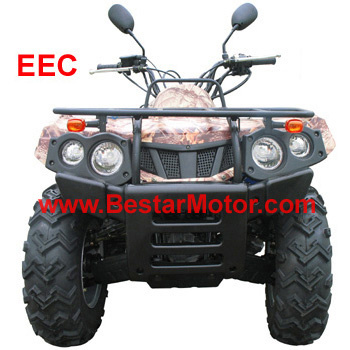

EEC 400CC 4WD Shaft Drive Utility ATV

Specifications

Prod Model:	400ATV

Product Description

EEC 4 Wheels Drive Utility ATV, Passenger: 2
Electronic switch between 4X4 and 4X2
Engine: 400CC, 4-stroke, Air&oil cooling, Upright
Drive mode: Shaft
Max. Speed: 56km/h
Gearshift: CVT, with reverse gear
Clutch mode: Automatic
Starting system: Electronic/pull start
Ignition: CDI
Spark plug: DR8EA (NGK)
Lubricating: Pressure splash
Front shock absorber: Double hydraulic spring shock
Rear shock absorber: Single hydraulic spring shock
Brake: Front: Double hydraulic disc/right handle brake
Rear: Signal hydraulic disc/right foot and left hand
Parking brake: Mechanical
Product size (L/W/H): 1970 X 1060 X 1100mm
Wheelbase: 1235mm
Height of seat: 827mm
Min. Ground clearance: 245mm
Wheel tread: 820mm
Bore stroke: 83mm X 71.6mm
Compression ratio: 9.5: 1
Max. Power: 20Kw (7000r/min- 7500r/min)
Nominal power: 12.5Kw / 7000r/min (EEC version)
Max. Torque: 30N. M (6000r/min- 6500r/min)
Lubricant volume: 2.30L
Compression ratio: 9.5: 1
Climbing obliquity: >=30degree
Turning radius: 6000mm
Toe in: 35mm
Tyre: Front: AT25*8-12 rear: AT25*10-12
Tyre pressure: 25Kpa
Max. Load: 210kg
Fuel tank: 13.5L
G. W. /N. W.: 340kg / 257kg
Carton size: 200*114*85cm
Loading quantity: 10PCS/20'GP, 24PCS/40'GP, 36PCS/40'HC
Option (not free): Front winch, Trailer hitch, Alloy rim, Snowplow
