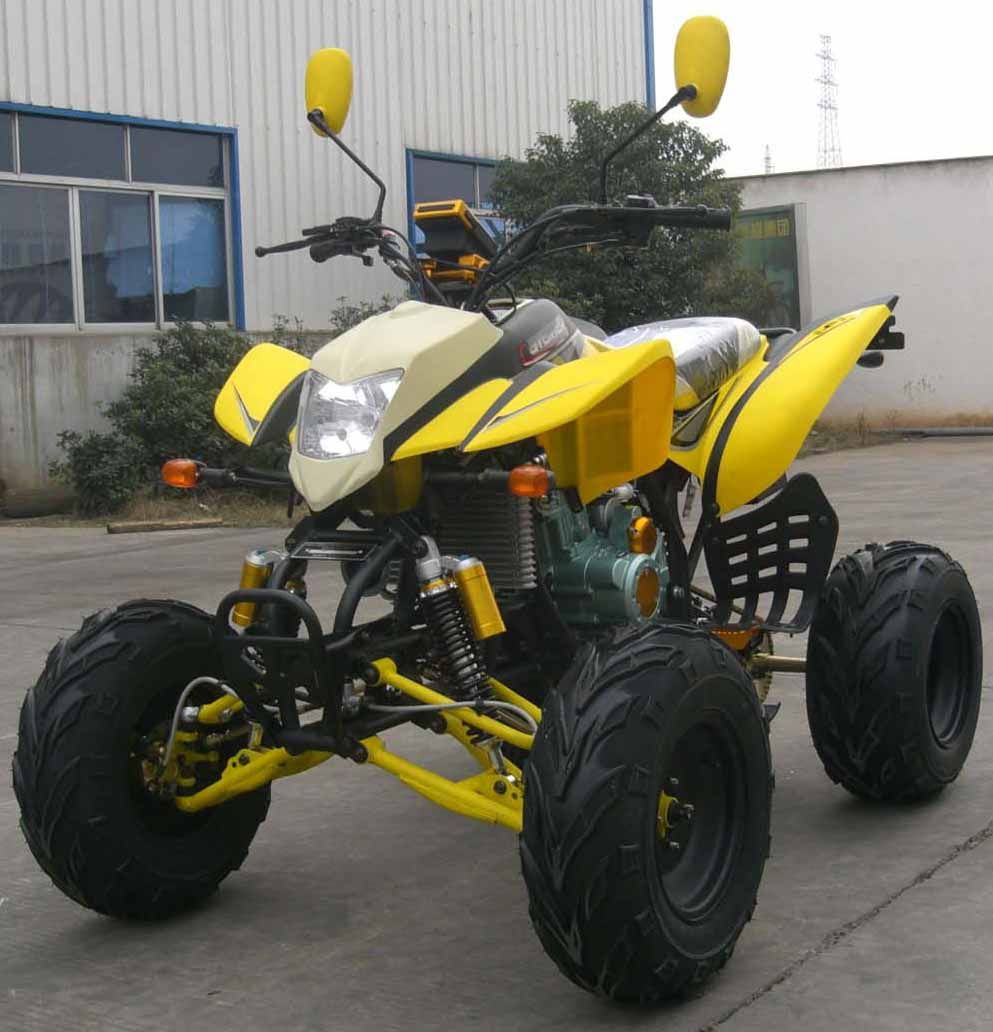

EEC 200CC, 250CC Quad (FA250S-11A/FA200S-7)

Specifications

Prod Model:	FA250S-11A/FA200S-7

Product Description

EEC 200CC/250CC quad(FA250S-11A/FA200S-7)

Features: 250CC/200cc, Single Cylinder, Water-Cooling, 4-Strok

1) Dimensions (L x W x H): 1800 x 1120 x 1130mm
2) Wheelbase: 1150mm
4) Start mode: Electric
5) Power: 10.3kW/7, 500rpm
6) Max. Torque: 15N. M/6, 000rpm
7) Max. Speed: 75km/h
8) Min. Ground clearance: 120mm
9) Dry weight: 155kg
10) Transmission mode: Chain
11) Break type (F/R): Drum/disc
12) Power source: 12V, 9A
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 4L
15) Front hanging: Integral ballonet absorber
16) Rear hanging: Inner ballonet absorber
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
18) Cylinder size: 63.5 x 62.2mm
19) Displacement: 197ml
20) Transmission: 4 gears with one reverse gear, manual clutch
21) Seat height: 880mm
22) Min. Turning radius: 2, 650mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1.1L
27) Gas cylinder number: 1
28) Max. Number of riders: 1
29) Lubrication: Press splash
30) Compression proportion: 9.2: 1

Outer packing: Carton dimensions: 1480 x 950 x 880mm
Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units

We value the customer satisfaction and quality are the first priority for us, and we have eec/coc and dot approved atv quads, eec approved dirt bikes, eec approved motorcycles, also we supply reliable warranty, which makes us a leading manufacturer in this line in a short time.
