Specifications
Certification: |
EEC |
Displacement: |
150CC |
Transmission: |
Chain |
Start-up: |
Electric |
Product Description
Pls take your time to browse our web site for more information about this product.

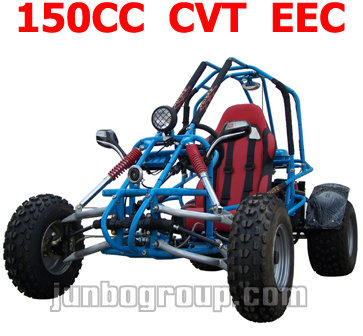

Engine type: 150CC, single cylinder, 4-stroke, air cooling, Automatic with reverse
Rating Power: 6.5kw/7500rpm
Max torque: 10.5N. M/4500rpm
Transmission mode: Chain drive
Gas tank capacity/Fuel: 6L/Unleaded gasoline above No. 90
Start way: Electric start
Battery: 12V, 9Ah
Max. Speed: 65km/h
Wheelbase: 1840mm
Distance between wheels:
Front: 1150mm
Rear: 960mm
Front tire: 21 x 7-10' 15PSI
Rear tire: 22 x 11-10' 15PSI
Front/Rear Brake: Hydraulic brake
N. W.: 220kg
G. W.: 266kg
Max. Load capacity: 160kg
Overall dimensions: 2, 380 x 1, 330 x 1, 430mm
Carton dimensions: 2, 300 x 1, 350 x 835mm
Conveyance:
Qty/20' FCL: 8PCS
Qty/40' HQ: 27PCS
