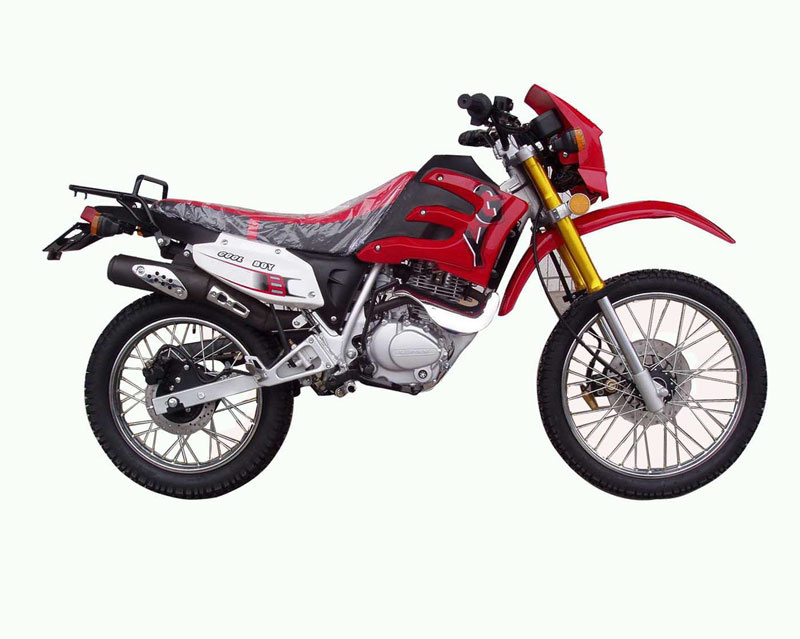

EC Dirt Bike / Pit Bike (HK150GY-5)

Specifications

Prod Model:	HK150GY-5

Product Description

Main technical specifications:

Motorcycle model: 200GY-5
Dimension ((L*B*H)mm): 2200*860*1220
Wheel base (mm): 1380
Min. Ground Clearance (mm): 200
Dry Weght: 120kg
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: 163FML-2
Bore*Stroke: 63.5mm*462.2mm
Displacement: 196.9ml
Maximum Power: 12kw/8000r/min
Maximum Torque: 14.5N. M/6500r/min
Clutch: Wet multi-plated
Lubrication: Pressure/ splash
Start: Electric start/Kick start
Ignition: C. D. I
Max. Speed (km/h): ≥100km/h
Economical Fuel Consumption (l/100km): ≤2.3L /100km
Front Type Size and Air Pressure: 2.75-21-4PR/200KPa
Rear Type Size and Air Pressure: 4.10-18-4PR/225Kpa
Climbing Ability: ≥23
Exhaust Index: CO≤3.8%; HC≤800ppm
Start Performance: ≤15s
Brake Performance: ≤7m/30km/h
