Specifications
Prod Model: |
XF110ZH-5 |
Markets: |
South America,Southeast Asia,Africa,Mid East,Western Europe |
Load Capacity: |
>200kg |
Product Description
All our products pass the China Compulsory Certification.
We are factory and we enjoy a good reputation in this tricycle and motorcycle field.
Low oil consumption and let you go farther in your road full of prosperity.
JIANGSU XIONGFENG VEHICLE CO., LTD MAKES YOUR SUCCESSFUL DRIVING IN A PROSPER ROAD!

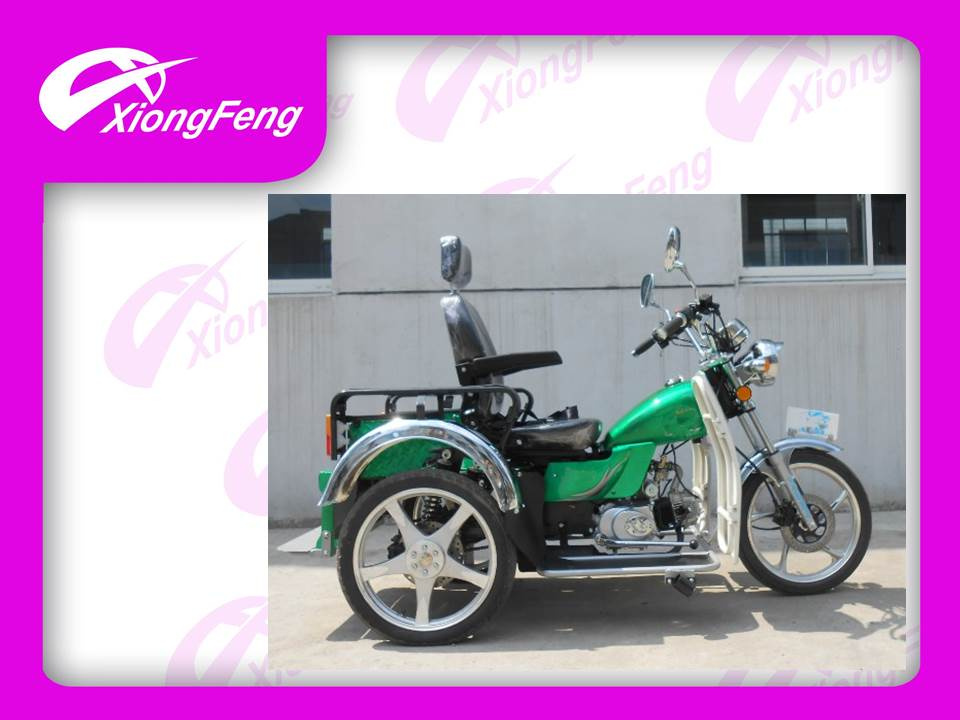

XF110ZH-5(disabled people tricycle)
Product Details: |
Dimensions(mm) | 1970 × 800 × 1100 |
Engine Type | Four stroke engines with single cylinder and air-cooled |
Displacement(ml) | 107 |
Bore & Stroke(mm) | 52.4 × 49.5 |
Max Power( Kw(r/min)) | 5.2 / 8500 |
Wheel Base(mm) | 1250 |
Wheel Span(mm) | 690 |
Complete Vehicle Kerb Mass(kg) | 150 |
Maximum loading(kg) | 300 |
Tyre | Front 2.50-17 Rear 2.75-17 |
Starter | Electric / Kick |
Model of Brake | Disc / Disc |
Maximum speed(km/h) | 70 |
Transmission | By chain |
Packing Details | SKD,CARTON AND IRON BRACE INSIDE |
Quantity | 57 pcs / HQ |
