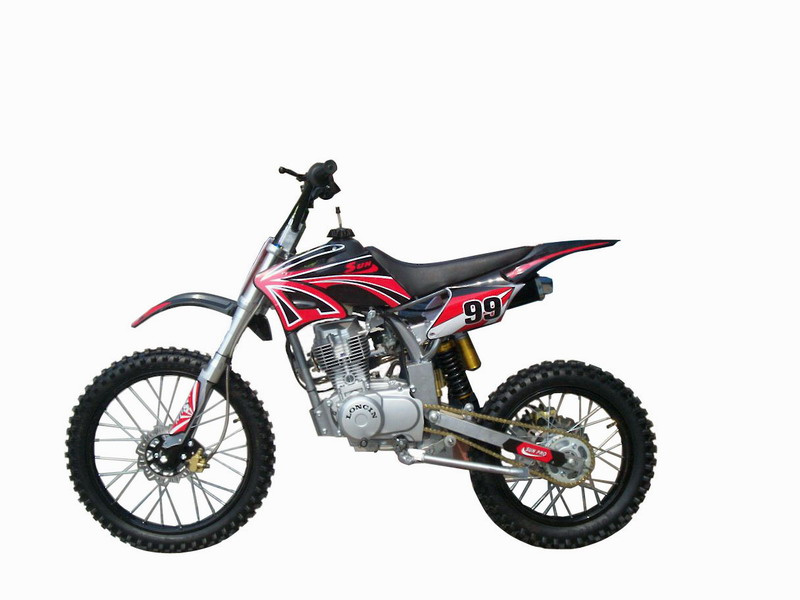

Dirt Bike(SN-DB23A)

Specifications

Prod Model:	SN-DA23A

Product Description

Vehicle specitication:
1) Dimensions(L*W*H)(mm): 1610*700*1100
2) Wheel base(mm): 1100
3) Min.ground clearance(mm): 150
4) Dry weight(kg): 70
5) Max.loading weight(kg): 75
6) Max.speed(kw/h):90
7) Brake method(FR/RR): disk/disk
8) Tire size(FR/RR): 19inch / 16inch
9) Seat height(mm): 830
10) Suspension/Front: Telescopic fork or upside-down
11) Suspension/Rear: Central Mono Rear Shock
12) Fuel Capacity: 5L
Outer packing: Cartons with steel frame
Dimensions: 1465*435*765mm
Conveyance: Qty/40' HQ:120pcs

Engine specitfications:
1) ENGINE type: 150cc,single cylinder; air-cooled,4-stroke
2) Bore*stroke(mm): 62*49.5
3) Piston swept volume(ml): 149.4ml
4) Compressing ratio: 8.5:1
5) Max.power and speed: 8.1kw/8000(-5%,+5%)
6) Max.torque(N.m/rpm): 10.0N.M/8500r/min(-5%,+5%)
7) Clutch type: moist
8) Starting method: kick/electric
9) Lubrication way: press and splash
10) Ignition: CDI
11) Trasmission: 4-speed, Manual clutch
12) Drive train: chain,15T/48T
