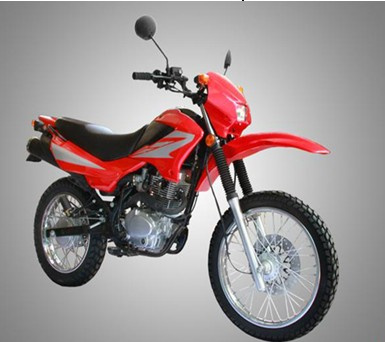

Dirt Bike HTDK125-1

Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
Engine:	4 Stroke
Displacement:	51-125CC

Product Description

Engine
Engine model 156FMI
Engine type Air-cooled, 4-stroke, 1-cylinder
Max. Power (kw/r/min) 7.8/9000
Max. Torque (N. M/r/min) 9.3/8000± 500
Carburetion PZ26
Ignition type CDI
Starting mode Electric/Kick
Engine type Air-cooled, 4-stroke, 1-cylinder
Max. Power (kw/r/min) 7.8/9000
Max. Torque (N. M/r/min) 9.3/8000± 500
Carburetion PZ26
Ignition type CDI
Starting mode Electric/Kick
Transmission International five speed
Drive train Chain
Chassis
Brakes/Front Disc
Brakes/Rear Drum/Drum
Front tyre size 2.75-21
Rear tyre size 4.10-18
Front wheel type Spokes
Rear wheel type Spokes

Dimensions
Dim(L× W× H)(mm) 2060× 830× 1350
Seat height(mm) 860
Wheel base(mm) 1380
Ground clearance(mm) 265
Fuel capacity(L) 8.5L
Fuel consumption (L/100KM) 2.2L
Loading quantity 20"/32, 40"/64, 40"HQ/96
Net weight(kg) 117
Gross weight(kg) 150
Packing size(mm) 1800× 445× 840
Others
Lighting 12V35W/35W× 1, 12V5W/21W× 1(rear)
Climb ability ≥ 18°
Brake distance(30km/hr) ≤ 7.00m
Max. Speed(km/h) ≥ 85
