Specifications
| Prod Model: | Orion 31-EC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel Capacity: | 3.5l / 0.77gal. |
| Engine Type: | Four-Stroke, Single Cylinder; Air Cooled |
| Transmission: | Five-Speed With Manual Clutch, 1-N-2-3-4-5 |
| Certification: | EEC |
| Engine: | 4 Stroke |
| Displacement: | ≤50CC |
| Starting System: | Electric-Kick Start |
Product Description

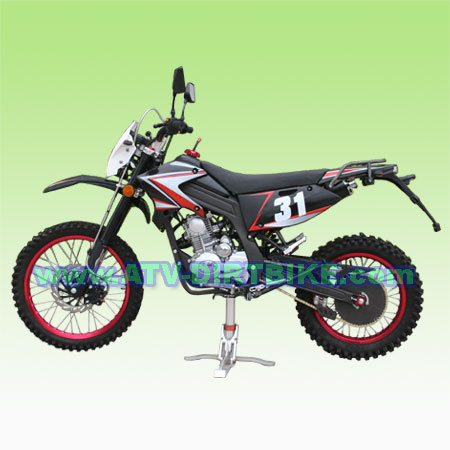

Dirt Bike EEC & COC (Orion 31-EC)Type:
Four-stroke, single cylinder, electric-kick start
Cooling: Air cooled
Displacement: 49.5ml
Bore x stroke: 39x41.4mm
Compression ratio: 9.0: 1
|
EEC&COC ORION 31-EC Engine |
|||||
|
|
||||
| Cooling: | Air cooled | ||||
| Displacement: | 49.5ml | ||||
| Bore x stroke: | 39x41.4mm | ||||
| Compression ratio: | 9.0:1 | ||||
| Max power: | 2.0Kw/7500rpm(1±5%) | ||||
| Ignition: | CDI | ||||
| Transmission: | Five-speed with manual cluth, 1-N-2-3-4-5 | ||||
| Front suspension: | Inverted and hydraulic fork | ||||
| Rear suspension: | Hydraulic and damping shock absorber | ||||
| Front brake: | Hydraulic single disc with dual piston caliper | ||||
| Rear brake: | Hydraulic single disc with dual piston caliper | ||||
| Front tire: | Motard110/70-17 Knobby70/100-19 | ||||
| Rear tire: | Motard110/70-17 Knobby90/100-16 | ||||
| Overall Size: | 2030mmX850mmX1110mm | ||||
| Wheelbase: | 1325mm/52.1in. | ||||
| Ground clearance: | 320mm/12.6 in. | ||||
| Seat height: | 910mm/35.8in. | ||||
| Dry weight: | 93 kgs/ 205lbs | ||||
| Fuel capacity: | 3.5L / 0.77gal. | ||||
| Carton size: | 1740X420X760mm | ||||
| Loading Qty : | 50/105/105pcs | ||||
