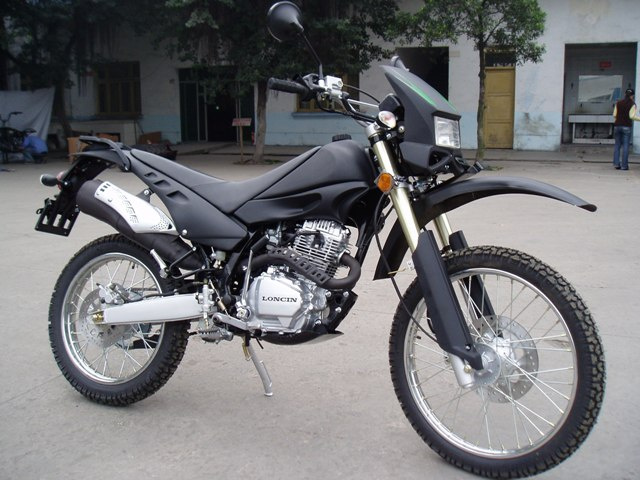

Home Shanghai Dissen Machinery Manufacture Co., Ltd. Dirt Bike (DXF200-4)
Specifications
| Prod Model: | DXF200-4 |
|---|
Product Description
Engine: Single cyliner, 4 stroke, air cooledBore and stroke (mm): 63X62
Displacement (ml): 193.3
Max power (kw/r/min): 11kw /7500r/min
Max torque (N. M. /r/min): 14N. M/6000r/min
Ignition: Electric/kick
Transmission: Cluch 5 gears
Seat height (mm): 860
Turning radius (mm): 1800
Ground clearance (mm): 350
Brake: Disc/drum
Front tyre: 1.40χ19/70/100-19
Back tyre: 1.60χ16/90/100-16
Starter: C. D. I
Tank (L): 9.1
Front suspension: Double reverse suspension
Rear suspension: Single arm-swing spring
Battery: 12V9Ah
Max load (kg): 150
Handling degree (°): 25
Oil capacity (L): 1.5
Transmission fluid (L): 0.28
Seating capacity: 1
Wheel base: 1350 mm
Lubrication: Splash wet multiple
