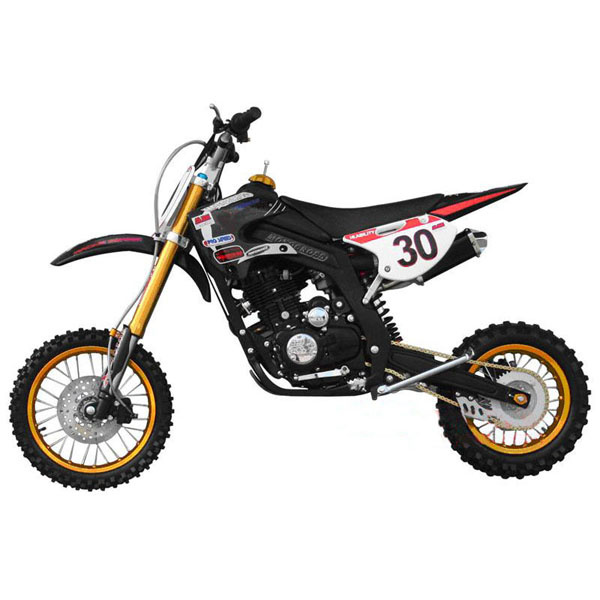

Dirt Bike (DB01)

Specifications

Prod Model:	DB01

Product Description

Engine Type: 4-Stroke single cylinder air cooled
Bore & Stroke: 62 x 49.5mm(150cc), 63.5 x 62.2mm(200cc), 67 x 65mm (250cc)
Starter: Kick Start or kick+electric ( 150cc ), Kick+electric start (200cc), Kick+electric start (250cc)
Ignition: CDI
Carburetor: 25mm Double float
Compression Ratio: 9.2: 1

Drive train
Transmission Manual: 5-speed included neutral gear, International shift pattern
Clutch: Manual
Final Drive: Chain #428
Max Power : 9.3/(8500+/-5%) (150cc), 10.8/8000 ( 200cc), 11.5/6500 (250cc)
Frame & Swing Arm Steel
Front shock: Inverted hydraulic Adjustable shock
Rear shock: Adjustable Air /Oil shock Absorber
Brakes: Front & Rear Hydraulic Disk

Seat Height: 780mm
Wheel base: 1300mm
Ground Clearance: 240mm
Front & Rear wheel Front: 60/100-14"; Rear: 80/100-12"
Engine and Rear Sprocket: 16 / 43 tooth
Package Size L/W/H: 175 x 80x1020cm, L/W/H: 154 x 43 x 75.5cm
Tank Capacity: 3ltr.
G.W./N.W.: 96kgs /86.5kgs
Colors: Black, Red, Green, Blue, Yellow, carbon looking
Toolset: Standard

Loading information
20" Ft Container: 51 pieces
40" Ft Container: 111pieces
40" Ft HQ Container: 111pieces
Fuel type: > 90# (GB17930-1999)
Engine machine oil: 15 W/40SE.
