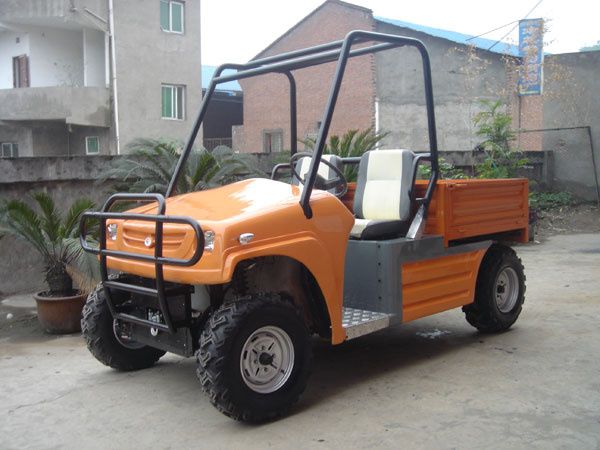

Diesel Utility Vehicle (JF800UTV)

Specifications

Prod Model:	JF800UTV

Product Description

Engine: Diesel, aluminum body, V-twin, forced air-cool, 4-stroke, BOSCH injector, 800CC
Bore x stroke: 86 x 72mm
Maximum power: 18kw/3000r/min 16/3600
Standard power: 15.0kw/3000r/min
Maximum torque: 52N. M/2600Nm/r/min
Compression radio: 19: 1
Ignition type: CDI
Start: Electric
Fuel tank capacity: 25L
Min. Fuel consumption: 320g/Kw. H
Lubrication: Forced, splashing, SAE-15W/30
Lube oil capacity: 1.7L
Battery: 12V60Ah Fuse: 30A
Head lamp: 12V 2x35W
Tail and brake lamp: 12V 2x5W
Side indicator lamp: 12V 2x5W
Frame: Strong steel structure, electrophoresis against rust, auto painting
Body: Strong fiberglass covers, auto painting
Suspension front: Single strut type, independent, spring
Suspension rear: Double torsion beam type, independent, spring
Brake: Front and rear hydraulic disc brakes by right foot pedal
Clutch: By left foot pedal
Parking: Hand brake
Turning system: Rack and pinion
Transmission: Shaft drive, 5MT with reverse gear
Front winch type: TDJ-A2500, electric, max. Tow capacity 1134kg
Dashboard: Auto speedometer, switchs assy, storage box
Dimension (L x W x H): 3160x1510x2000mm
Wheelbase: 2300mm
Wheel track: Front 1510/rear 1500mm
Min. Ground clearance: 260mm
Cargo bed (L x W x H): 1300x1380x360mm
Max. Loading capacity: 840kg
Vehicle load capacity: 990kg
Max speed: 60km/h (limiting)
Tires: Front AT25x8-12 and rear AT25x10-12
Climbing capacity: >30o
Max. Noice: <80dB
Turning radius: 4000mm
Gross/Net weight: 520kg/440kg
Packing size: 2800 x 1550 x 1100 mm
Container quantity: 8units/40GP, 14units/40HC in SKD(80% assembled)
Options: Colors, CD radio player, windshield, hard top cover, close cab, hydraulic cargo bed, snow shovel, 4x4 petrol engine.
