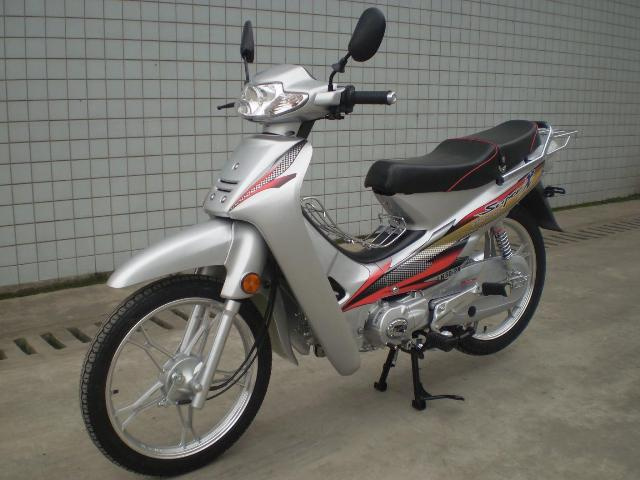

CUB Motorcycle (CB125)

Specifications

Prod Model:	CB125

Product Description

Body Style
Drive Line: Chain
Engine Family: Cub
Engine Displacement: 125cc
Horse Power: 7.0@8500 rpm
Net Weight: 92 kg
Gross Weight: 99 kg
Dimensions
Length: 1880-690-1170(mm)
Ground Clearance: 125mm/85mm
Wheel Base: 1250mm
Engine Specification:
Type: 4-stroke, Air cooling, Single Cylinder
Manual or Automatic: Auto
Fuel: Gasoline
Displacement: 124ml
Bore-Stroke: 54mm-54mm
Max Power: 5.2kw/8500 rpm
Max Torque: 5.9kw/8500 rpm
Compression Ratio: 10.11: 1
Type: Chain
Suspension: Telescopic, Damper Rear
Brakes: Fr Drum/Hydraulic Disc Brake, Rear Drum
Steering: Tubular, Plastic Covered
Wheel and Tires: 2.50-17/2.75-17(Fr/Rr)
Headlight: Halogen Bulb(can be in Philips)
Start: Electric/Kick
Battery: 12V5A, Maintainience Type
Ordering Relative Data:
Loading Qty: Cbu-105 units/40HQ, Ckd-160 Se
