Specifications
Product Description

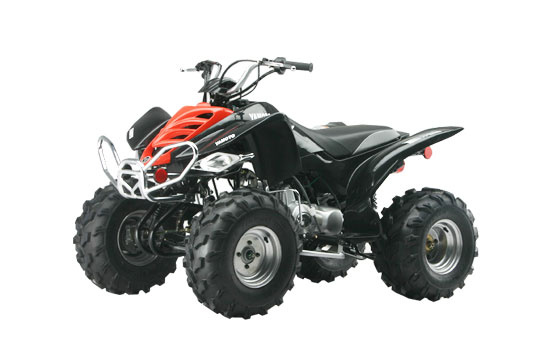

ATV110ccSPECIFICATION
Engine Type:4-Strokes, AirCooled
Transmission System:Shaft Drive
Bore x Stroke(mm):52.4x 49.5
Piston Displacement:107
Maximum Power(kw/r/min):5.5/8000
Maximum Torque(N.M./r/min):6.5/5750
Starting System:Electric Starter
Transmission:4-Speed, SemiAutomatic
Seat Height(mm):670
Min Turning Radius(mm):2400
Ground Clearance:100
Brake(Front/Rear):Drum/Drum
Tyre, Fromt:19X 7-8/2.9Psi
Tyre, Rear:18X9.5-8/2.9Psi
Ignition Type:C.D.I
Fuel Tank Capacity(L):7.8
Front Suspension:Leading Arm
Rear Suspension:Monoshock Swing Arm
Parking Brake:Mechanical Lock
Battery:12V-9Ah
Max Load Capacity(kg):95
Engine Oil Capacity(L):0.95
Gear Oil Capacity(L):0.12
Dry Weight(kg):130
Rider Capacity:1 Person
Wheel Base:1040
Overall Height(mm):950
Lubrication:AUTO
Overall Length(mm):1540
Overall Width(mm):860
Compression Ration:9.1:1
Cylinder Arrangement:Single Cylinder
QTY/Container:20units/20';44units/40';66units/40'HQ
