Specifications
Prod Model: |
Wave 110 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
50cc, 70cc, 100cc, 110cc, 120cc, 125cc |
Engine Type: |
4-Stroke |
Displacement: |
51-125CC |
Certification: |
CCC |
Type: |
Cub Motorcycle |
Fuel: |
Gas / Diesel |
Condition: |
New |
Product Description

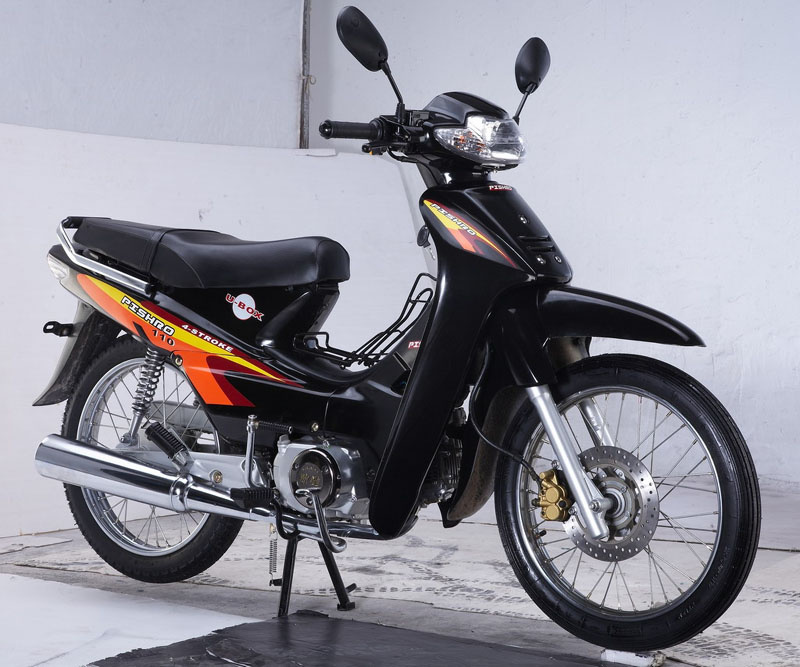

1. Cub Motorcycle for Wave 110 is a classic model and very popular in the worldwide market.
Why Choose Us:
2. We manufacture the chassis by ourselves and we use robot arm for welding; So best quality is guaranteed.
3. Zongshen engines are used in all the motorcycles, and all the other parts such as muffler, electric equipments, carburetor match the engine perfectly.
4. We have a full-scale and trustworthy after-sale service.
5. We have better price than other suppliers.
Engine |
Engine Type: | 109cc, 4-Stroke, Single cylinder, Air Cooled |
Bore x Stroke(mm) | 52.4 x 49.5 |
Compression Ratio | 9.0: 1 |
Max. Power(kw/r/min) | 5.2/8000 |
Max. Torque(N. m. /rpm) | 6.9/6000 |
Clutch: | Manual or semi-auto clutch |
Ignition System | CDI |
Starting Mode | Electric& Kick |
Chassis |
Fuel Capacity | 3.5L |
Consumption of Fuel: | ≤ 2.1L/100km |
Transmission | 4-Speed |
Wheel Base | 1268mm |
Battery | 12v7Ah |
Seat Height | 780mm |
Max. Speed(km/h) | 85 |
Min. Ground Clearance (mm) | 130 |
Max. Load Capacity (kg) | 150 |
Dry Weight(kg) | 95 |
Gross Weight(kg) | 115 |
Brakes (Front/Rear) | Disc/drum |
Front Tire: | 2.50-17 |
Rear Tire | 2.75-17 |
Front Suspension | hydraulic compound spring |
Rear Suspension | hydraulic compound spring |
Overall Dimension (L× B× H mm) | 1875mmx685mmx1060mm |
Package Dimension (L× B× H mm) | 1685mmx460mmx830mm |
Loading Qty (20//40/40HQ) | 32/70/105units |
Available Color | As you required |
