Specifications
Prod Model: |
GBTST400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Classic 400CC ATV With EEC Crtificate (G: |
2WD/4WD)ATV |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
400CC |
Product Description

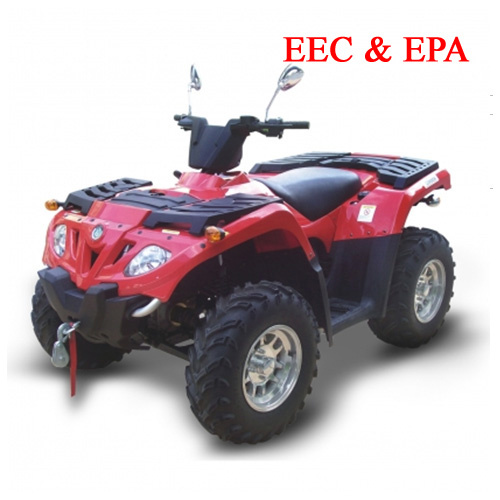

CLASSIC 400CC ATV WITH EEC CRTIFICATE (GBTST400) (2WD/4WD)ATV
Available Color: Red, Blue
Size: 2250mm x 1200mm x 1225mm
Wheelbase: 1250mm
Front track: 1000mm
Rear track: 950mm
Ground clearance: 230mm
Engine type: Single cylinder, water-cooled, 4-stroke
Engine capacity: 400CC
Bore x Stroke: 91mm x 61.5mm
Corrected compression ratio: 10.3: 1
Max output power: 20kw/6500rpm
Max torque: 32Nm/5500rpm
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Automatic (C. V. T system)
Maximum load: Double seats/200kg
Fuel tank: 16.2L
Climbing: 20° - 25°
Top speed: 80km/h
Front/Rear brake: Hydraulic Disc Brake/right foot control
Front/Rear tire: AT25X8-12 / AT25X10-12
Final drive: Shaft drive
Carton size: 2315mm x 1305mm x 860mm
Net weight: 275kg(2X4WD) 290kg(4X4WD)
Gross weight: 334kg(2X4WD) 349kg(4X4WD)
Quantity: 27PCS/40HQ; 18PCS/40GP; 8PCS/20GP
