Home Wiztem Industry Company Limited China Manufacture 250cc Kinder Quad Quady ATV

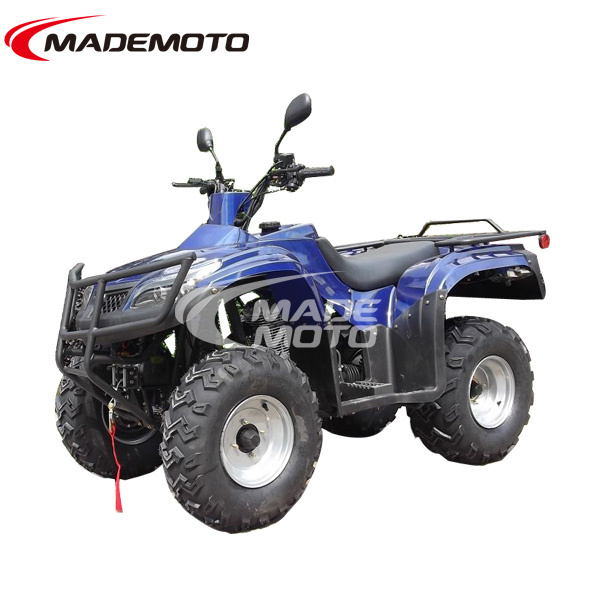

China Manufacture 250cc Kinder Quad Quady ATV
| Price: | US $ 1524-1634/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Money Gram,Western Union |
Specifications
| Prod Model: | AT2002-D |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: | 195X118X110cm |
| Max Power: | 10.0kw/7,500rpm,11.0kw/7500rpm |
| Max Torque: | 13.5n.M/5,500rpm, 17.5n.M/5,000rpm |
| Capacity Weight: | 165kgs |
| Starting: | Electric |
| Ignition: | C.D.I |
| Ground Clearance: | 155mm |
| Brake: | (Front/Rear) Drum/Drum(for Shaft),Disc(for Chain) |
| Transmission: | Automatic with Inside Reverse Gear |
| Wheel Size: | 116cm |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 250CC |
| Structure: | Without Door |
| Brake Type: | Disc Brake |
Product Description
ATVCE Approved 250CC ATV Equipped with Powerful water-cooled Engine
AT2002-D
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 250cc
3. Engine type: Single cylinder, water-cooled
4. Starting system: Electric
5. Fuel tank capacity: 11L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 10.0kw/7, 500rpm, 11.0kw/7500rpm
9. Max. Torque: 13.5N. M/5, 500rpm, 17.5N. M/5, 000rpm
10. Brakes: (Front/Rear) Drum/Drum(for shaft), Disc(for chain)
11. Transmission: Manual clutch, 4-speed, reverse gear, chain/shaft drive
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm
14. Rear suspension detail: Mono shock swing arm
15. Wheel side: Front: 23x7-10, rear: 22x10-10
16. Vehicle dimension: 208x124x113cm
17. Wheel base: 116cm
18. Seat height from ground: 67cm
19. Min. Ground clearance: 90mm
20. Loading capacity: 165kgs
Package: Iron cage with carton outside
21. Net weight: 206kgs
22. Gross weight: 228kgs
23. Carton size: 194x109x84cm/1pc
24. Container: 12pcs/20', 24pcs/40', 36pcs/40'HQ
Minimum Order Quantity: 5pcs
