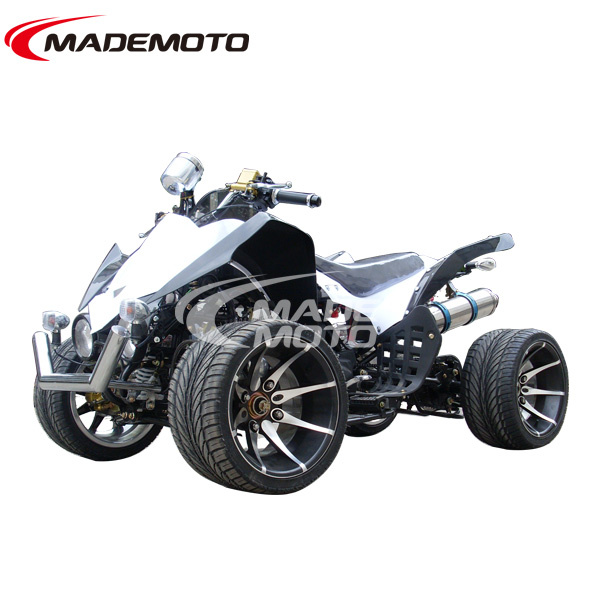

China Made 125cc Mini Quad ATV
| Price: | US $ 1031.42/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Specifications
| Prod Model: | AT0528-B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Torque: | 4.2nm/5000rpm, 5.2nm/5000rpm, 5.5nm/5000rpm |
| Max Power: | 3.0kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/ |
| Ignition Type: | Cdi |
| Transmission: | 4-Speed,Semi-Automatic Reverse |
| Brake (Front/Rear): | Disc/Disc |
| Starting System: | Electric Start |
| Front Suspension Details: | Double a X Swing Arm |
| Rear Suspension Details: | Mono Shock Swing Arm |
| Front Tire Spec: | 235/30-12 |
| Rear Tires Spec: | 235/30-12 |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Displacement: | 125cc |
Product Description
ATV125cc ATV with electric start
AT0528-B
1. Engine type: 125CC
2. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
4. Ignition type: CDI
5. Transmission: 4-speed, semi-automatic reverse
6. Brake (Front/Rear): Disc/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 235/30-12. Rear tires spec: 235/30-12.
12. Vehicle dimensions: 190x110x103cm
13. Wheel base: 1300mm
14. Seat height from ground: 63cm
15. Ground clearance: 80mm
16. Load capacity: 150kg
17. Fuel tank capacity: 5L
Package:
5. Net weight: 140kg
6. Gross weight in carton: 160kg
7. Carton size: 150x83x71cm
8. Container: 30pcs/20', 63pcs/40', 65pcs/40'HQ
