Cheap Price China Made 110cc ATV (AT1104)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Specifications
| Prod Model: | AT1104 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: | 1200*750*870 |
| Max Power: | 5.2/8500(Kw/Rpm) |
| Max Torque: | 7.2/6000(Nm/Rpm) |
| Ignition: | C.D.I |
| Lubrication: | Pressure and Splash |
| Compression Ratio: | 9.1:1 |
| Fuel Capacity: | 2.5(L) |
| Capacity Weight: | 65(Kg) |
| Battery: | 12V4ah |
| Wheel Base: | 915(Mm) |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 110CC |
| Structure: | Without Door |
| Maximum Speed: | 45(Km/H) |
| Brake Type: | Front:Hydraulic Disc; Rear:Hydraulic Disc |
Product Description

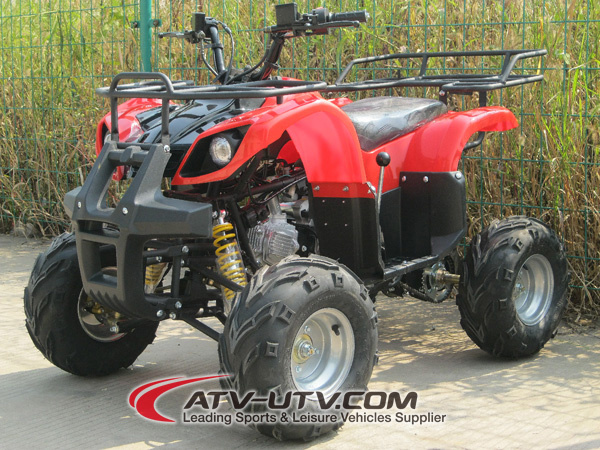

New 110cc ATV with front and rear Hydraulic discAT1104
Key Specifications:
1. Engine Type: 4-stroke, 1-cylinder, air-cooled
2. Product size: 1200*750*870
3. Displacement: 110cc
4. Max Power: 5.2/8500(kw/rpm)
5. Max Torque: 7.2/6000(Nm/rpm)
6. Starting: Electric
7. Ignition: C. D. I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 9.1: 1
10. Transmission: Automatic
11. Final Drive: Chain drive system
12. Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
13. Max Speed: 45(Km/h)
14. Fuel Capacity: 2.5(L)
15. Capacity Weight: 65(kg)
16. Battery: 12V4Ah
17. Wheel Base: 915(mm)
18. Front/Rear Tire: 16*8-7
19. Mini Ground Clearance: 105(mm)
20. Color: Black, red, blue, yellow, camo(+$6.30)
Package: Iron cage with carton outside
21. Net Weight: 90(kgs)
22. Gross Weight: 110(kgs)
23. Carton Size: 1240*775*660
24. Container capacity: 36pcs/20GP; 111pcs/40'HQ
Minimum Order Quantity: 5pcs
