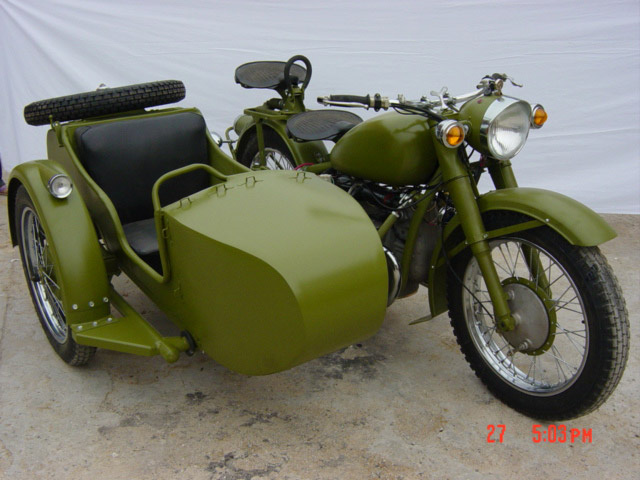

Home Shanghai Qunhe Locomotive Co., Ltd. CE-Three Wheel Motorcycle (CJ750)
Specifications
| Prod Model: | CJ750 |
|---|
Product Description
Specification of CJ750Dimensions (length*width* height) (mm): 2400*1590*1000
Wheel base (mm): 1420
Tread (mm): 1100
Ground clearance (mm): 135
Column reach (mm): 60
Angle of column: 25.5 degree
Dry weight (kg): 350
Max payload (kg): 3 Persons+100 kg
Brake space (30km/h) (m): < 8
Co (%): 5
HC (ppm): 1500
Max noise
Economic speed fuel consumption: (L/100km): 6 (17.65kw); 7 (22.00kw)
Top speed (km/h): 85.00 (17.65kw); 90.00 (22.00kw)
Climb capacity (Degree): 11 (17.65km); 15 (22.00kw)
Acceleration at the start (s): <25
The way of Lubricate: Pressure and splash.
Engine: CJ-750
Engine output horsepower: 24 Horsepower / 32 Horsepower
Dry weight (kg): 80
Cylinder diameter x stroke (mm): 78x78
Total displacement (cm³ ): 746
Compression Ratio: 6: 1 (17.65kw); 7: 1 (22.00kw)
Rated power and speed (kw/r/min): 15/3300(17.65kw); 18.75/4000 (22.00kw)
Max power and its corresponding speed(kw/r/min): 17.65/4200-4800 (17.65kw) 22/4500-4800 (22.00kw)
Applicable gasoline: RQ-70 or RQ-75
Capacity of gasoline tank (L): 22
Oil capacity of crankcase (L): 2
Oil capacity of gear box (L): 0.8
Carburetor Type: PZ24 (17.65kw); PZ26 (22.00kw)
Applicable oil: HQ10 (for Summer)| HQ6 (for Winter)
Clutch: Mechanically controlled double-disc. Dry friction
Mode of driving shaft: One universal joint
Way of ignition: Battery
Speed reducing ratio of rear drive: 4.62: 1
Starting mode: Kick and electric
Tyre Pressure(kpa): Front wheel-157(1.6kg/cm² )
Rear wheel-196(2kg/cm² )
Side wheel-177(1.8kg/cm² )
Battery type: 6-MA-28.
