Home Jinhua Beite Industry and Trade Co., Ltd. CE Electric Mobility Scooter (BTM-02)
Specifications
| Prod Model: | BTM-02 |
|---|---|
| Markets: | North America,Eastern Europe,Mid East,Western Europe |
Product Description

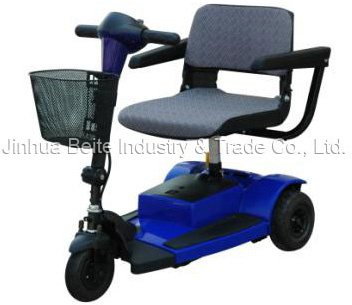

Product DescriptionProduct Name: CE Electric Mobility Scooter(BTM-02)
Model: BTM-02
Color: all kinds of color
Specification:
Weight capacity: 110kg
Rear wheel size: 203mm/7.99"
Front wheel size: 199mm/7.83"
Battery: 12V20AH*2
Charger: 24V 2.5AMP(automatic three-mode selections )
Charger time: 8-14h
Controller: DYNAMIC
Motor: 400W
Net weight(with batteries): 48kg
Battery Weight: 6.5kg*2
Overall dimension: 990*560*810mm/38.98*22.05*31.89"(including anti-tip wheel)
overall carton dimension: 1070*560*500mm/42.13*22.05*19.68"
Seat dimension: 432*406*305mm/17.00*15.98*12.00"
Ground Clearance: 40mm
climbing capability: 8 degree
Turning radius(min): 840mm/33.07"
Max forward speed: 6.4km/h
Range: 4-5h(subject to the load, terrain conditions)
Qfy/20'FCL: 80pcs
Qfy/40'HQ: 220pcs
Features:
Innovative design, foldable, compact and easy to operate.
Anti-tip, anti turn-on-side when turning, advanced transaxle, electromagnetic braking system, and controlling system.
Reliable range has a range of 25-30km after charging.
360 degree swivel chair and foldable armrest make you become more comfortable.
Efficient up to 70% of transaxle output, auto shift to sleeping condition to save energy when stay idle.
| Model: | BTM-02 |
| Standard: | CE |
| Productivity: | 1000pcs /month |
