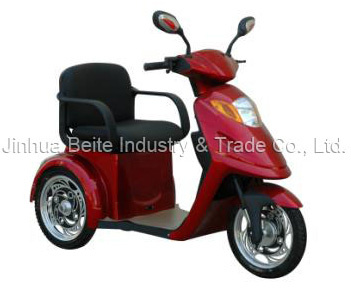

CE Electric Mobility Scooter (BTM-01A)

Specifications

Prod Model:	BTM-01A
Markets:	North America,South America,Eastern Europe,Western Europe

Product Description

Programmable Controller Electric Mobility Scooter (BTM-01A)

Model: BTM-01A
Color: All kinds of color
Specification:
Weight capacity: 150kg
Rear wheel size: 406*64mm/16*2.5"
Front wheel size: 406*64mm/16*2.5"
Anti-tip wheel size: 5.2*48mm/0.2*1.89"
Battery: 12V/24AH*2
Charger: 110VAC-230VAC, (Adjustable)/24VDC-4A
Recharge time: 11-12h
Controller: DYNAMIC
Motor: 400W
Net weight(with batteries): 75KG
Overall dimension: 1480*680*1200mm/58.27*26.77*47.24"
Overall carton dimension: 1520*700*1000mm/59.13*27.56*39.37"
Ground Clearance: 150mm/5.91"
Maximum climbing capability: 20 degree
Turning radius(min): 1200mm/47.24"
Max forward speed: 15km/h (adjustable)
Max backward speed: 6km/h (adjustable)
Range: 50Km
Qfy/20'FCL: 22pcs
Qfy/40'HQ: 48pcs
Features:
Easy operation, fashionable design.
150kg user weight capacity.
Comfortable and deluxe seating.
Electric-magnetic braking system and automatic power off.
Electric transaxle drive with rear wheel drive provides optimum maneuverability.
