Home Wiztem Industry Company Limited CE Approved Quad Bikes for Sale

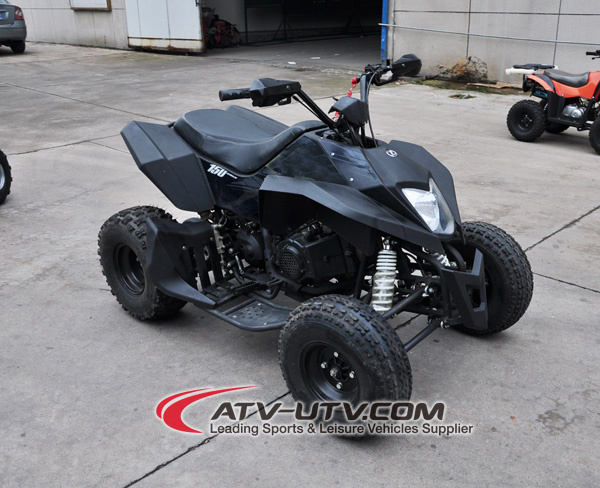

CE Approved Quad Bikes for Sale
| Price: | US $ 850-943/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Money Gram,Western Union |
Specifications
| Prod Model: | AT1502 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: | 1610*1050*1050 |
| Max Power: | 6.0/7500(Kw/Rpm) |
| Max Torque: | 8.3/6000(Nm/Rpm) |
| Capacity Weight: | 150kgs |
| Starting: | Electric |
| Ignition: | C.D.I |
| Lubrication: | Pressure and Splash |
| Brake: | (F/R) Double Drum Brake/Hydraulic Disc |
| Transmission: | Chain Drive |
| Wheel Size: | 1130(Mm) |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 150CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Mademoto |
| Power: | 150cc |
Product Description
ATVGas-Powered 4-Stroke 150cc Engine ATV
AT1502
Key Specifications:
1. Product size: 1610*1050*1050
2. Engine Type: 4-stroke, 1-cylinder, air-cooled
3. Displacement: 150cc
4. Max Power: 6.0/7500(kw/rpm)
5. Max Torque: 8.3/6000(Nm/rpm)
6. Capacity Weight: : 150kgs
7. Starting: Electric
8. Ignition: C. D. I
9. Lubrication: Pressure and Splash
10. Compression Ratio: 9.2: 1
11. Transmission: CVT automatic with reverse inside
12. Final Drive: Chain drive system
13. Brake: Front: Hydraulic disc, Rear: Hydraulic disc
14. Max Speed: 70(Km/h)
15. Fuel Capacity: 7(L)
16. Battery: 12V9Ah
17. Wheel Base: 1130(mm)
18. Front/Rear Tire: 19*7-8, 21*10-8
19. Seat Height: 760
20. Mini Ground Clearance: 100(mm)
21. Optional color: White, green, black, red, blue
Package: Iron cage with carton outside
22. Net weight: 145kgs
23. Gross weight: 172kgs
24. Carton size: 1430*900*865mm/1pc
25. Container: 20pcs/20GP; 63pcs/40'HQ
Minimum Order Quantity: 5pcs
