Home Guangdong Marshell Electric Vehicle Co., Ltd. CE Approved Folding Mobility Scooter Electric (DL24500-2)

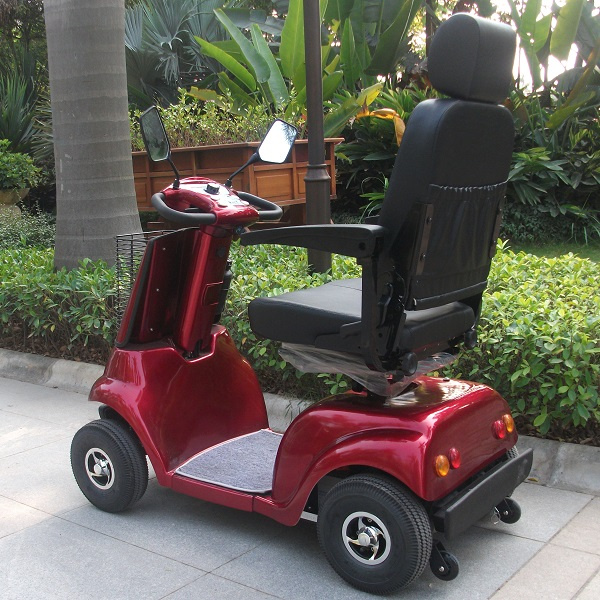

CE Approved Folding Mobility Scooter Electric (DL24500-2)

CE Approved Folding Mobility Scooter Electric (DL24500-2)
Price: US $ 700-900/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T

Specifications

Prod Model: DL24500-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 1250*610*1280mm
Max. Climbing Ability (Loaded): 20%
Passenger Capacity: 1
Chassis: Steel
Gross Weight: 128kg
Running Distance: <45KM
Motor: Brush
Brake: Front V-brake / Rear Drum Brake
Battery Type: Lead-acid Battery
Frame Material: Steel
Voltage Of Battery: 24V
Certification: CE
Wheel Hub: Alloy Hubs
Folded: Folded
Charging Time: 6-8h
Part: Motor
Max Speed: 10km/H
Power: 500W
Maximum Loading Capacity: 120kg
Wheel Size: 200*50

Product Description

CE approved folding mobility scooter electric (DL24500-2)


folding mobility scooter features:

1. Standard color: Burgundy, Red, Black; Sunshade, Raincover, Walking stick holder, Drink Holder for option;

2. Curtis Controller ; Electric brake ;Light system is the standard;

3. Easy to operate to move forward and backward;

4. Adjustable seat and can be folded;

5. Well design of the package, so the goods can be protected well;

6. Has CE certificate for whole carts and for main parts also pass CE, UL,SAA for different carts.


folding mobility scooter specification:
ModelDL24500-2
Passenger Capacity1
Power supply
Battery12V45AH*2
Motor24V500W
ControllerPG,i24-70
Charger24V5A
Performance
Max. Speed10KM/H
Max.travelling range40
Climbing capactity20%
Brake Range<=3
Minmum turning radius<=2.5
Gross Weight128KG
Carrying capacity120KG
Dimension
Tyre4.10/3.50-4
Normal dimensions1250*610*1280MM
Folded dimensions1250*610*820MM
Carton dimensions1320*730*870MM
Qty per container24PCS/54PCS/81PCS
Optional partsRear basket, walking stick bracket, Weather enclosure


Who is Marshell?

Marshell was founded in 2002 with two business units, Electric Vehicle and Electronics. The core business of Marshell Electric Vehicle is in the research, development and manufacture of low-speed electric vehicles including mobility scooters, golf carts, resort and utility vehicles, etc.

Whereas, Marshell Electronics, of automotive and home power products including battery charges, battery maintainers, power inverters, jump starters, portable power domes, solar power extenders, etc.

How do you benefit?

Working with Marshell, you can enjoy considerable benefits with added values:

The full spectrum of electric vehicles, automotive and home power products of the highest possible standards of quality and performance.

Great flexibility of production capacity enables you to fast meet the market change and demand with our two ISO9001:2000 certified factories, strategically located in Zhaoqing and Shanghai with a total of 210,000 m2 of fully equipped workshops.

Cost down on your existing products to regain your competitiveness and market shares with our proven quality and competitive price.

Full service and support on product upgrade and new product engineering, fast to market at minimized cost with our engineering team of more than 100 engineers for OEM and ODM projects.
