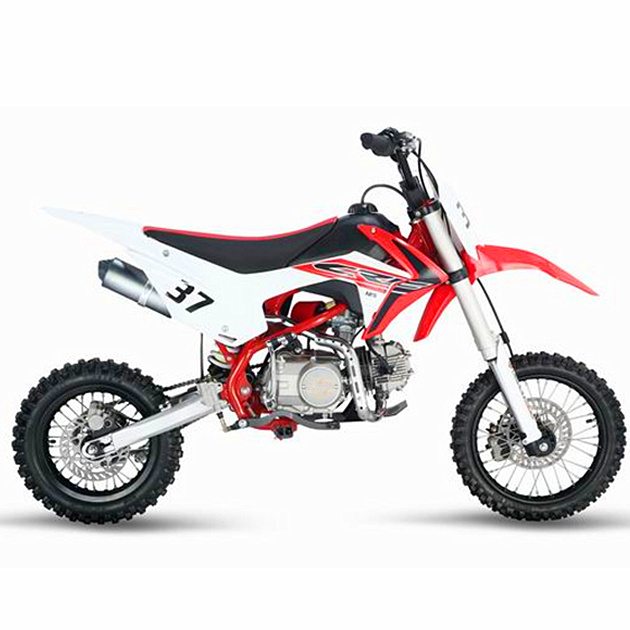

CE Approved 125cc Dirt Bike (DMD125-01)

Specifications

Prod Model:	DMD125-01
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Starting System:	Kick System
Engine:	4 Stroke
Condition:	New
Fuel:	Gas / Diesel
Cylinder Quantity:	1
Certification:	CE
Tank Capacity:	3.4L
Seat High:	32in/810mm
Displacement:	125cc

Product Description

DMD125-01    New Honda design, high grade plastic, pure and light color, more fashionable. Specification: ENGINE Engine type: 125CC, single cyclinder, 4-stroke, air cooled Bore X Stroke: 54x54mm Compression Ratio: 9.2:1 Max power 6.5kw/7500rpm Min Fuel Consumption <=367g/KW.H Max torquer: 8.0N.m/ 5000rpm Transmission system All up gear, N-1-2-3-4 lgnition mode CDI electronic ignition Clutch Manual, wet multiple Carburetor KF PZ22 CHASSIS Frame High strengthened duralable steel central cradle, 2-spar steel main body Swing arm: Heavy duty steel swing arm Suspension system   Front fork:735mm length up-side-down suspenssion, non-adjustable Rear shock: 325mm length high performance, non-adjustable Brake system Hydraulic disc brake, special designed disc for sufficient brake, disc size: front: 190mm, rear: 190m CAPACITY Maximum load 187lb/(85kgs) Tank Capacity 0.9gal(us)/(3.4L) Engine and Rear sprocket 16/39T, 420# Chains. DIMENSIONS Dimensions(L*W*H) 1630mm*760mm*1090mm G.W/N.W 154lb/143lb(70kgs/65kgs) Carton size 1620mm*385mm*735mm Seat Height 32in/810mm Wheel base 48in/1215mm Ground Clearance 11.4in/290mm Rim Size Front 1.40-14/ Rear 1.85-12 Tire size Front/Rear: 60/100-14 80/100-12 Knobby tire LOADING 40'HQ 155Pcs 40'FT 129Pcs 20'FT 54Pcs
