Home Wiztem Industry Company Limited CE Approved 110cc ATV (AT1104)

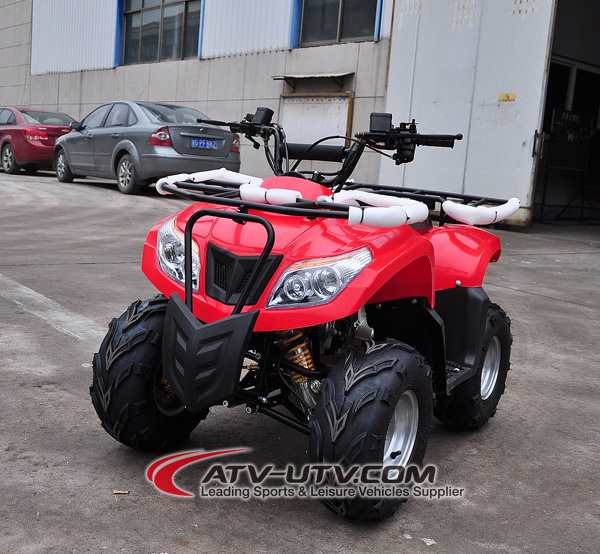

CE Approved 110cc ATV (AT1104)
| Price: | US $ 419.21-483.99/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
Specifications
| Prod Model: | AT1104 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Torque: | 7.2/6000(Nm/Rpm) |
| Max Power: | 5.2/8500(Kw/Rpm) |
| Ignition Type: | Cdi |
| Transmission: | Automatic |
| Brake (Front/Rear): | Hydraulic Disc/ Hydraulic Disc |
| Starting System: | Electric Start |
| Compression Ratio: | 9.1: 1 |
| Front/Rear Brake: | Front: Hydraulic Disc; Rear: Hydraulic Disc Brake |
| Max Speed: | 45(Km/H) |
| Fuel Capacity: | 2.5(L) |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 110CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | <50 km/h |
| Certification: | CE |
Product Description
ATVNew 110cc ATV with front and rear Hydraulic disc
AT1104
Key Specifications:
Engine Type: 4-stroke, 1-cylinder, air-cooled
Product size: 1200*750*870
Displacement: 110cc
Max Power: 5.2/8500(kw/rpm)
Max Torque: 7.2/6000(Nm/rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Pressure and Splash
Compression Ratio: 9.1: 1
Transmission: Automatic
Final Drive: Chain drive system
Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
Max Speed: 45(Km/h)
Fuel Capacity: 2.5(L)
Capacity Weight: 65(kg)
Battery: 12V4Ah
Wheel Base: 915(mm)
Front/Rear Tire: 16*8-7
Mini Ground Clearance: 105(mm)
Color: Black, red, blue, yellow, camo(+$6.30)
Package: Iron cage with carton outside
Net Weight: 90(kgs)
Gross Weight: 110(kgs)
Carton Size: 1240*775*660
Container capacity: 36pcs/20GP; 111pcs/40'HQ
