Cargo Passenger Tricycle Electric Three Wheel Motorcycle
| Price: | US $ 820-830/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | 150cc 200cc 250cc |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Cargo Motorcycle |
| Displacement: | 126-250CC |
| Engine Type: | 4-Stroke |
| Fuel: | Gas / Diesel |
| Certification: | DOT |
| Condition: | New |
Product Description

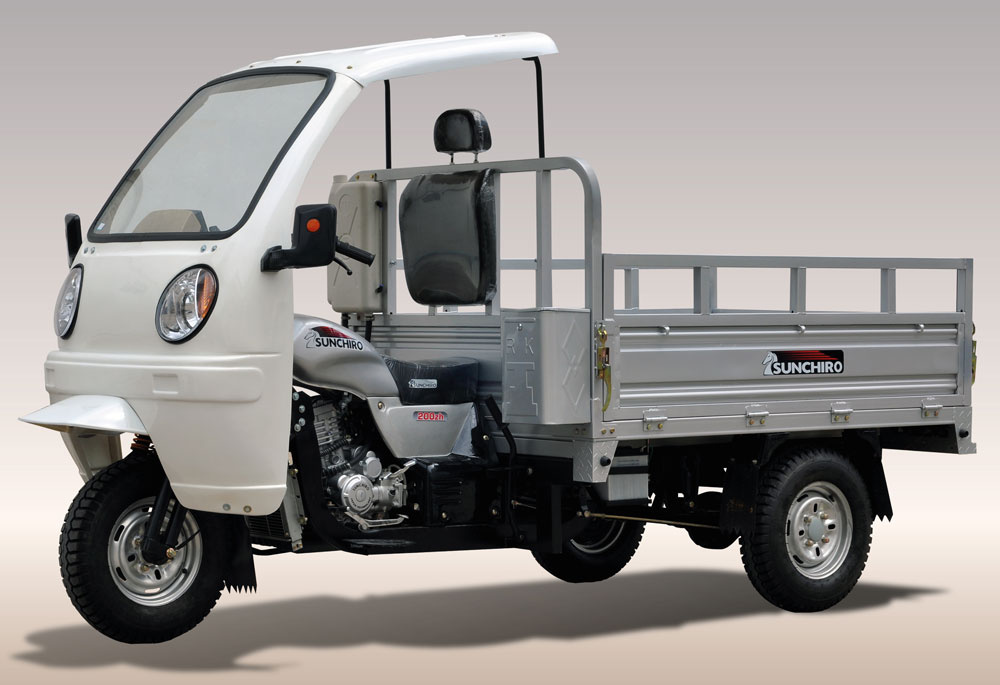

TT150C-1 tricycle for cargo150cc. 200cc.250cc, air-cold. water-cold engine. for cargo. for passenger.
| Part I | Application | Cargo&passengers Transport |
| Technical Design | Design Max Speed | ≥60 km/h |
| Loading Capacity | 300-500 kg | |
| Unladen Kerb Weight | 300 kg | |
| Dimension(L*W*H) | 3155x1250x2030 mm | |
| Cargo size(L*W) | 1600*1250mm | |
| Color | Red/Green/Yellow/Black/Other colors | |
| Track | 1050 mm | |
| Wheel Base | 2100 mm | |
| Ground Clearance | 160 mm | |
| Brake Mode | Front&Back wheels, Drum | |
| Transmission Type | Shaft Drive | |
| Power | 8.0 kw | |
| Cool Type | Air Cooled | |
| Min.Fuel Consumption | <=354g kw.h | |
| Fuel Type | Gasoline | |
| Fuel Tank Capacity | 12 L | |
| Part II | Engine Type | Single cylinder,4-stroke,camshaft downward, Lifan, 150cc aircooling |
| Engine Details | Bore Stroke | 62×49.5mm |
| Fuel Type | Gasoline | |
| Compression Ratio | 9.5:1 | |
| Rated Power&Rotating Speed | 8.0 kw /8000rpm | |
| Max.Torgue/Rotating Speed | 10.5 N.m /5500rpm | |
| Lowest No-Load Speed Stability | 1500±150rpm | |
| Displacement(cc) | 149ml | |
| Ignition System | C.D.I. | |
| Apply to | Motor tricycle | |
| Starter | Kick/Electric | |
| Part III | Starting System | Electric/Kick |
| Operation | Transmission Mode | Shaft drive |
| Transmission | 4 Forward &1 Reserse Gears | |
| Front suspension | Normal shock absorber arms | |
| Rear axle | Normal car rear axle | |
| Rear suspension | 3+2 Leaf spring | |
| Gearshift Control | Manual-Foot | |
| Clutch Method | Manual-Hand | |
| Brake Operate Mode | Manual-Hand or Foot | |
| Part IV | Transport | By Land/Sea/Other |
| Packaging | Port Of Loading | Chongqing/Shanghai/Other ports of china |
| Original Manufacturer | Chongqing Tengtian Technological Develop Co., Ltd. | |
| Package | Protective Packaging | |
| Loading Capacity (SKD) | 16 units in 20"GP, 42 Units in 40"HQ | |
| Delivery Time (from loading port) | 20-25 Days after receiving advance payment |
