Brazil Ducar Cheap Gas Motor Scooter for Sale

Brazil Ducar Cheap Gas Motor Scooter for Sale
Price: US $ 720-800sets
Trade Terms: FOB,CFR,CIF
Min Order: 10sets
Pay Type: L/C,T/T

Specifications

Prod Model: DJ150ZH-7
Markets: South America,Southeast Asia,Africa,Mid East,Eastern Asia
Name: Brazil Ducar Cheap Gas Motor Scooter for Sale
Brand: Ducar; Kawasaki;OEM
Loading Capacity: 300kg
Fuel: 12L
Speed: 60km/H
Driving Type: Motorized
Loading Type: Flat Plate Type
Tricycle Wheel Distance: 1040mm
Style: Loading
Weight: 300kg
Max Speed: >50km/h
Displacement: 126-250CC
Engine: 4 Stroke
Maximum Loading Capacity: ≥120kg
Fuel Tank Capacity: >8L
Folded: Unfolded
Certification: CCC

Product Description

  Brazil Ducar Cheap Gas Motor Scooter for Sale



Technical specifications for Gas Motor Scooter



Chongqing   Tengtian Technological Develop Co., Ltd.

Product Name

   Brazil Ducar Cheap Gas Motor Scooter for Sale

Product Technical Specifications(General   Information)

Part I
  Technical Design

Application

Cargo Transport

Design Max Speed

60 km/h

Loading Capacity

300-500 kg

Unladen Kerb Weight

300 kg

Dimension(L*W*H)

3155x1250x1430 mm

Color

Red/Green/Yellow/Black/as you choose

Track

1050 mm

Wheel Base

2100 mm

Ground Clearance

160 mm

Brake Mode

Front&Back wheels, Drum

Transmission Type

Shaft Drive

Power

8.0 kw

Cool Type

Water Cooled

Min.Fuel Consumption

354g kw.h

Fuel Type

Gasoline

Fuel Tank Capacity

12 L

Part II
  Engine Details

Engine Type

Single cylinder,4-stroke,camshaft downward

Bore Stroke

63.5×49.5mm

Fuel Type

Gasoline

Compression Ratio

9.5:1

Rated Power&Rotating Speed

8.0 kw /8000rpm

Max.Torgue/Rotating Speed

11.0N.m /6500rpm

Lowest No-Load Speed Stability

1500rpm

Displacement(cc)

156ml

Ignition System

CDI

Apply to

Motor tricycle

Starter

Kick/Electric

Part III
  Operation

Starting System

Electric/Kick

Transmission

5 Forward &1 Reserse Gears

Gearshift Control

Manual-Foot

Clutch Method

Manual-Hand

Brake Operate Mode

Manual-Hand or Foot

Part   IV
  Packaging

Transport

By Land/Sea/Other

Port Of Loading

Chongqing/Shanghai/Other ports of china

Original Manufacturer

Chongqing Tengtian Technological Develop Co., Ltd.

Package

SKD,CKD,CBU

Loading Capacity (CKD)

22 units in 20"GP, 54 Units in 40"HQ

Delivery Time (from loading port)

20-25Days after receiving advance payment



Please Note:

*All sizes are approximate,any other sizes are available according to customers' special requests.

*For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd.

*Any details of the motor tricycle should subject to our final confirmation before ordering.



     ............................................................................SHOW TIME..........................................................................


Brief Introduction



Economic and easy to use

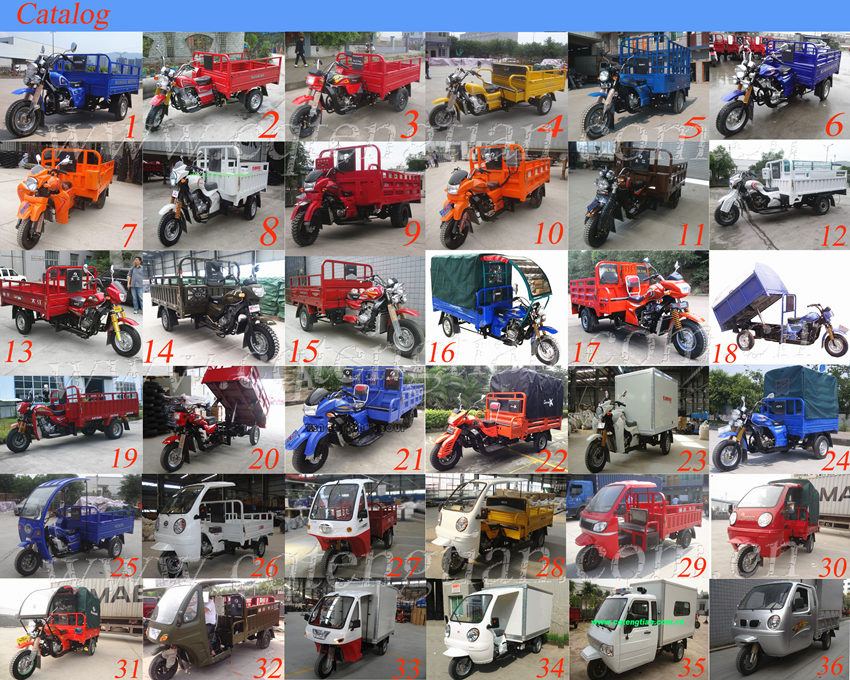

Tricycles vary from size to color



Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require atricycle you do not see here, please contact us as this is just an example of our product and we can do much more.



Why should you choose us?





1. We Tengtian Technological offer outstanding products:

2. Choose us Tengtian Technological, you can get:
