Specifications
Prod Model: |
et-atvquad-10 mini atv quad |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Design: |
Bat Design |
Color: |
Red.Blue, Black |
Approval: |
CE |
Transmission Type: |
Manual |
Engine Type: |
2 Stroke |
Structure: |
Without Door |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
<50 km/h |
Certification: |
CE |
Condition: |
New |
Displacement: |
49cc |
Power: |
49cc |
Brand: |
Emto |
Product Description

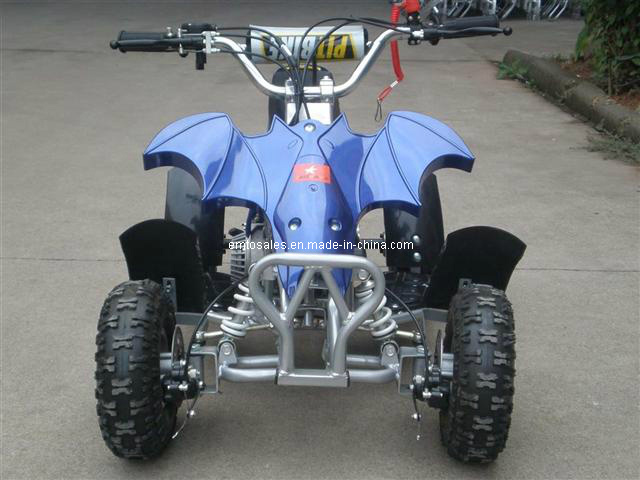

49CC ATV quads
Engine: 1.49CC, single cylinder, air-cooled, 2-stroke; Aluminum material
2. Starting system: Electric + pull start
3. Max. Torque and rotate speed: 3.5N. M / 6, 000rpm
Chassis: 1. Brakes (Front/Rear): Disc
2. Absorber (front/rear): Spring - absorber
3. Tires(Front/Rear): 4.10-6/13x5.00-6 biger tires
4. Drive train: Chain Fuel capacity: 1L
5. Battery: 12V 4AH
6. Remote control 7. Double muffler
8. Urgent flameout switch
Dimensions: 1. Wheel base(Front wheel to rear wheel): 70cm Seat height: 50cm
2. Ground clearance: 7.5cm 3. N. W: 33kg G. W: 41kg
4. Product sizes: 102× 69× 70cm
5. Carton sizes: 103× 58× 50cm
Other: Max speed: 45km/h Max load capacity: 110Kgs
Container: Qty/40HQ: 230PCS
Engine: | 1.49cc, single cylinder, air-cooled, 2-stroke | | | | |
| 2. Starting system: pull start | | | | |
| 3. Max. torque and rotate speed: 3.5Nm / 6,000rpm | | | | |
Chassis: | 1. Brakes (Front/Rear): disc | | | | |
| 2. Absorber (front/rear):Spring - absorber | | | | |
| 3. Tires(Front/Rear): 4.10x10-4/4.10x10-4 | | | | |
| 4. Drive train: Chain Fuel capacity: 1L | | | | |
Dimensions: | 1. Wheel base:600mm Seat height:530mm | | | | |
| 2. Ground clearance:110mm | | | 3. N.W: 29kg G.W:35kg | |
| 4. Carton sizes:990 x 580 x 500mm | | | | |
Other: | Max speed: 45km/h Max load capacity: 80Kgs | | | | |
container: | Qty/20Fcl:88pcs | | Qty/40Fcl:184pcs | | 40HQ:240pcs |
