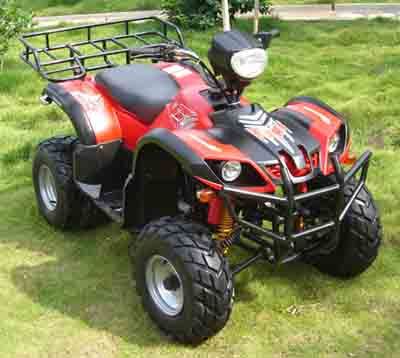

ATV (ZT-ATV110-6)

Specifications

Prod Model:	ZT-ATV110-6

Product Description

ENGINE
Engine Type: Single Cylinder, 4 Stroke, Air-Cooled
Engine Displacement (ml): 107
Bore*Stroke (mm): 52.4*49.5
Max Power (kw/ (r /min) ): 6/8000
Max Torque ( N. M/ r / min): 7/6000
Compression Ratio: 9.0: 1
Lubrication Oil Capacity (L): 0.9
Minimum Fuel Comsumption (g/kw. H): 365

TRANSMISSION
Start Mode: Electrical
Transmission Mode: Chain
Brake Mode ( Front / Rear): Drum / Disc
Front Hanging: Double Arm-Swing
Rear Hanging: Integral
Brake Distance ( m / 30km): 7
Shift Speed Type: Four Gear With Reverse Gear ( 3-2-1-N-R )
Clutch Mode: Auto Clutch

EXTERNAL CONDITION
Length*Width*Height (mm): 1730*920*1050
Minimum Turning Radius (mm): 3000
Climbing Degree: 30
Lamp: Head Lamp
Seat Height (mm): 800
Wheel Base (mm): 1110
Front Track (mm): 760
Rear Track (mm): 680
Minimum Ground Clearance (mm): 150
Top Speed (km / h): 55
Fuel Capacity (L): 7.8
Tyre Dimension ( Front / Rear ): AT19*7-8/AT18*9.5-8
Battery: 12V 9A
Cover Material: PP
Color: Red / Blue / White / Yellow / Black

PACKING
Carton Dimensions: 1520*820*780mm
N. W.: 135KG
G. W.: 155KG

CONVEYANCE
Qty/20GP: 30pcs
Qty/40GP: 63pcs
Qty/40HQ: 63pcs
