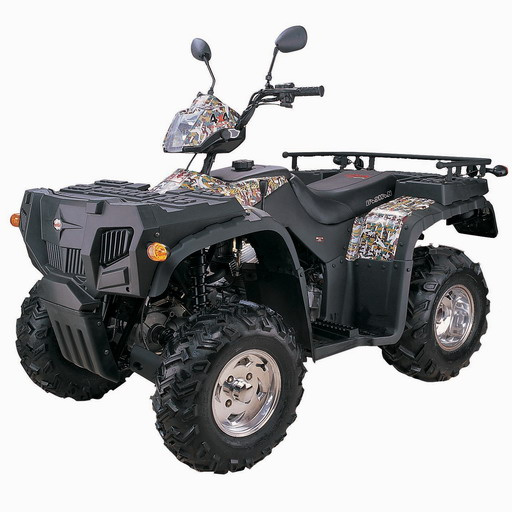

ATV (YX250S-7)

Specifications

Prod Model:	YX-250-7

Product Description

specification
length*width*height: 1,920*1,030*1,200mm
wheel base :1,160mm
engine type :single cylinder, air-cooling, 4-stroke
start mode :electric/manual
power(kw/r/min) :10kw/7,500rpm
max torque(N.m/r/min) :15N.m/6,000rpm
max speed(km/h) ≥60km/h
mini ground clearance(mm) :155mm
dry weight(Kg): 240kg
transmission mode :axis
break type :disc/drum
battery :12V, 14Ah
climbility ≥25 degree
tank capacity :11L
front hanging :double arm-swing
rear hanging :integral
tyre Front wheels: 22x 7-10 Rear wheels: 22 x 10-10
cylinder diameter*journey(mm) :71 x 58mm
displacement(ml) :229.6mL
shift mode :5 gears, automatic clutch
seat height(mm): 820mm
mini turning radium(mm) :2,900mm
parking trig :mechanical lock
ignition mode :CDI
loading capacity(kg) :165KG
engine oil ;1.6L
gear oil :0.25L
person: 1
lubrication :press splash
compression ratio :8.7:1
packing dimension: 1,970 x 1,120 x 880mm
conveyance :
"20' GP / 10units
40' GP / 24units
40' HQ / 36 units"
