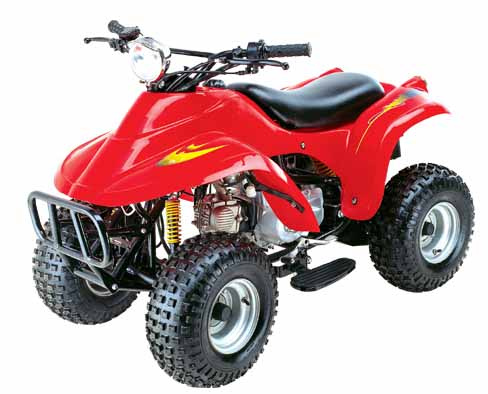

ATV (YD-Q07)

Specifications

Prod Model:	YD-Q07

Product Description

The Specifications:
Dimension (L×W×H): 138×76×80cm (1 Inch=2. 54cm)
Wheel Base: 900(mm)
Min. Ground Clearance: 14cm
Rim Type: Spoke/Alloy
Dry Weight: 98(kg)
Fr. Tyre Size And Air Pressure: 16×8-7
Rr. Tyre Size And Air Pressure: 16×8-7
Fr./Rr Brake. Drum
Max. Loading Capacity: 125(kgs)
Fuel Tank Capacity: 5(L)
Max. Speed: 48 (km/h)
Break Performance: ≤7m/30km/h
Max. Fork Advancing Angel: 10°
Max Voice83dB(A)
Engine Type: Single-cylinder, Air-cooled Four-stroke
Bore X Stroke: Stroke39.0x41.4 (mm)
Displacement: 50cc
Compression Ratio: 8.8:1
Power: 1.6/7500 (kw/r/min)
Max. Torque: 2.2/6000 (N. M/r/min)
Starting ModeI: Electric Start/Kick Start
Gnition Mode: CDI Electronic Ignition
36pcs/20FT
