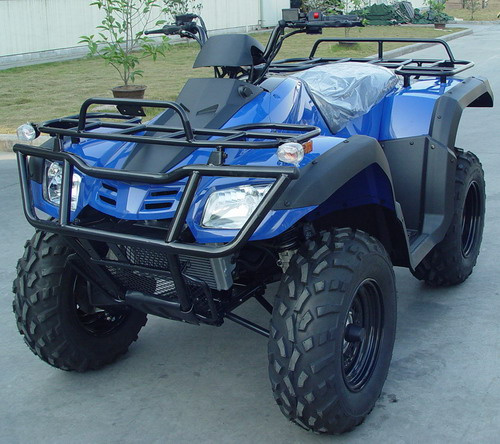

ATV with EEC/EPA(FA-D300)

Specifications

Prod Model:	FA-D300

Product Description

Engine type: Single cylinder 4 stroke water cooled, cvt
Displacement: 300cc
Bore * stroke: 72. 5mm*66. 8mm
Max. Power (kw/rpm): 13.5kw/6000r/min
Max. Torque (nm/rpm): 22n. M/5000r/min
Max. Speed: 70km/h
Clutch: Auto
Wheelbase (mm): 1271mm
Seat height (mm): 895mm
Ground clearance: 183mm
Net weight (kgs/lbs): 267kgs
Compression rati 10. 3: 1
Carburetor: Cvk052
Lubricate: Seperated&pressure
Air filter type: Dry air filter net
Spark plug: A7rtc
Starting: T. C. I electric
Gearshift: Forward (h/m/l) and return
Transmission: Shaft
Brake front: Front double hydraulic disc brake
Brake rear: Rear double hydraulic disc brake
Brake distance: <=15m
Front suspension: Double wishbone
Rear suspension: Single wishbone
Shock absorber (f): Double wishbone
Shock absorber (r): Single wishbone
Battery: 12v-14ah
Lubr. Capacity: 1.6l
Fuel: 93#
Fuel capacity: 14.5l
Turning radius: 3280mm
Max. Load (kgs/lbs): 156kgs
Front tire: 25*8-12
Rear tire: 25*10-12
Overall (l/w/h): 2016*1180*1237mm
Cartone size (l/w/h): 2280*1290*870mm
Package 20"/40" (set): 8pcs/27pcs
