Specifications
Product Description

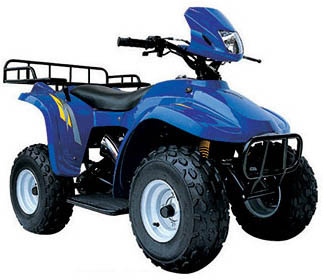

Model: Ty-Atv125l
Engine: 1-Cylinder, 4-Stroke, Air-Cooled.
Displacement: 49. 5ml
Compression Ratio: 10. 5: 1
Max Power: 2. 2kw/7000r/Min;
Max Torque: 3. 0nm/6000r/Min;
Starter Method: Electric
Lubrication Method: Pressure And Splash
Overall Length: 1090mm
Overall Width: 640mm
Overall Height: 700mm
Axle Base: 750mm
Wheelbase: 500mm
Dry Weight: 75kg
Ignition Type: Cdi
Transmission: Strap Drive,
Max Speed: Not Less Than 24. 0km/H
Tire Size: 145/70-6;
Rear Brake: Drum;
Battery Size: 12v(110x65x105mm)
