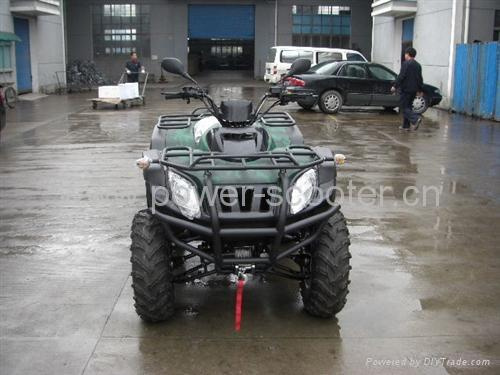

ATV (TP-TL650-EECATV)

Specifications

Prod Model:	TP-TL650-EECATV

Product Description

ATV (TP-TL650-EECATV)
Technical specification of TL650 ATV-B(With EEC)
1) Engine type: Two Cylinder, 4-stroke, water-cooled, 4 forward gears with reverse
2) Displacement: 650cc
3) Max Torque: 49N. M/2700-3300r/min (Europe standard: 39.0N. M/2700-3300r/min) 4) Max Power: 20.6kw/4500r/min (Europe standard: 15kw/4500r/min)
5) Compression ration: 9.0: 1 (Europe standard: 8.4: 1)
6) Ignition system: Battery ignition
7) Oil capacity: 15L
8) Economical oil exhaust(L/100km): 5.5
9) Max speed: 80km/h (Europe standard: 75km/h)

10) Starter system: Electric
11) Transmission: Dual independent shaft drive
12) Brake Type: Disc brake/disc brake
13) 4*4 system: On-command 2WD/4WD and Command front diffential lock
14) Wheelbase: 1300mm
15) Ground clearance: 240mm 16) Tires (front / rear): 25 x 8-12 / 25 x 10-12 17) N. W.: 385KGS G. W.: 450KGS
18) Product dimension: 2160*1180*1200
19) Carton dimension(Don't take down wheel): 2200*1230*1050
Carton dimension(Take down wheel): 2200*1200*840 20)
If you take down the wheel: Qty/20FT: 10 units

Qty/40HQ: 27units If you not take down the wheel: QTY/20FT: 8 units
Qty/40FT: 18units
Winch: +EUR 50.0/PC
Aluminum rims: + EUR 75.0/PC
Camouflage color: + EUR 55.0/PC
Automatic: + EUR 400.0/PC
Snow Blade: + EUR 130.0/PC
