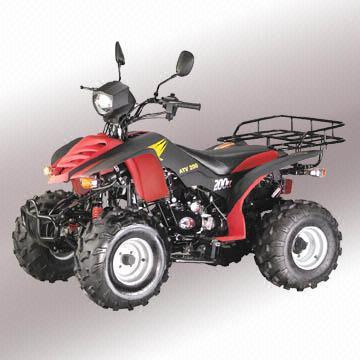

ATV (TP-ATV028)

Specifications

Prod Model:	TP-ATV028

Product Description

Engine: 200cc, air-cooled, 4-stroke
Power: 10.0kW/7,500rpm
Max torque: 13.5N.m/6,500rpm
Top speed: >=70kph
Displacement: 197ml
Transmission mode: shaft
Front/rear break: drum/disc
Climb degree: >=20 degree
Oil tank: 4L
Front hanging: double arm-swing
Rear hanging: intergral
Shift gear: four gear with reverse gear / manual clutch
Loading capacity: 150kg
Product dimensions: 1,850 x 980 x 1,080mm
Parking dimensions: 1,485 x 835 x 770mm
GW/NW: 158/150kg
Container: 29pcs/40', 64pcs/40', 66pcs/40'HQ
