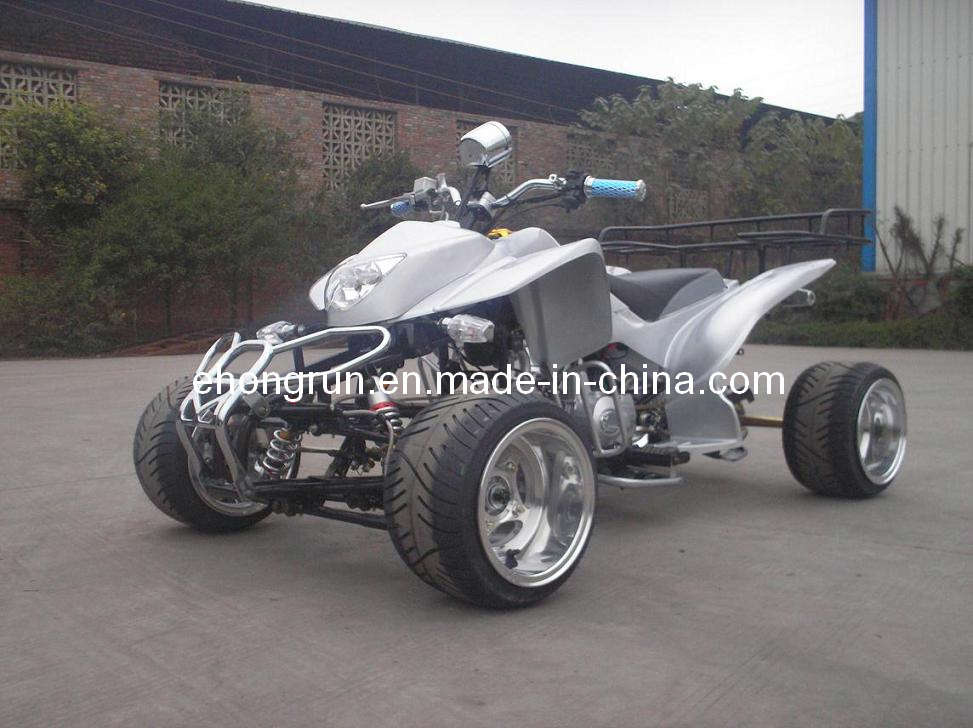

ATV (T-110N)

Specifications

Prod Model:	T-110N

Product Description

Engine type: 110cc Single cylinder air-cooled 4 stroke
Max. Speed (km/h): 60
Transmission system: Chain drive
Maximum power: 12.5/8000
Maximum torque (Nm/rpm): 15.0/600
Starting system: Electric start
Seat height (mm): 720
Ground clearance (mm): 110
Brake (front/rear): Disk/disk
Tires: 10-inch 205-30
Ignition type: CDI
Fuel tank capacity (L): 4.5
Fuel no.: RQ 90
Lubrication type: Pressure, splash
Idling/turning speed (rpm): 1500
Front suspension: Wishbone suspension
Rear suspension: Mono shock swing- arm
Climb capability: 30
Engine oil capacity (L): 0.9
Parking brake: Mechanical lock
Battery: 12V/9Ah
Rider capacity: 1 person
Rear track (mm): 760
Front track (mm): 810
Compression ratio: 10.16: 1
Cylinder arrangement: Single cylinder
Lubrication: Press splash
Conveyance: 20' FCL/33pcs 40'HQ/ 66pcs
