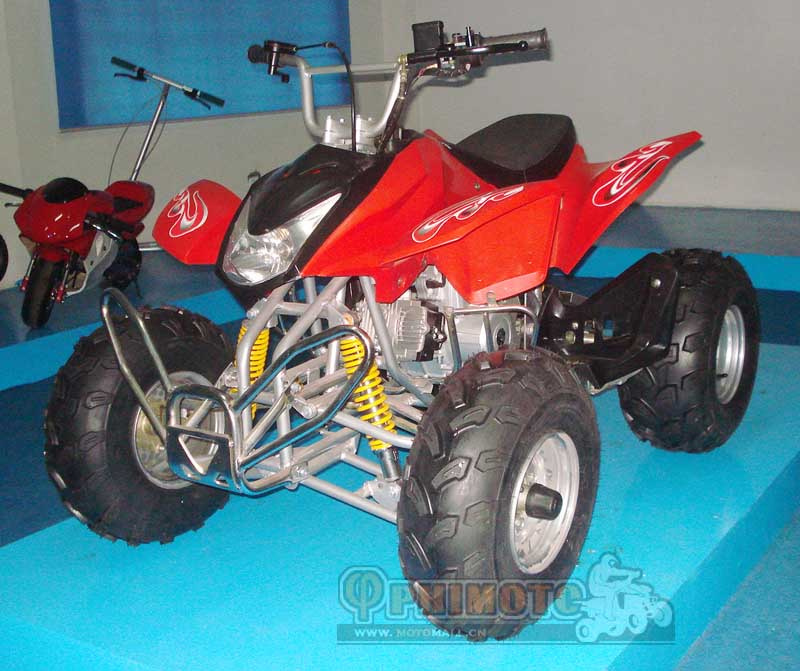

Home Sports Vehicle Co., Ltd. ATV (SV-Q015)
Specifications
| Prod Model: | SV-Q015 |
|---|
Product Description
1) Engine Model: GY62) Engine Style: Single Cylinder, Air-cooled, 4-stroke
3) Bore x Stroke: 57.4 x 57.8 (mm x mm)
4) Ignition: C. D. I.
5) Lubrication: Pressure/ Splash
6) Max. Power: 7.0/7000+-150 (Kw/r/min)
7) Max. Torque: 8.8/5500+-150 (N. M/r/min)
8) Impression Ratio: 8.8: 1
9) Starting Type: Electric
10) Max. Speed: 55(Km/H)
11) Oil Consumption: ≤365(g/Kw)
12) Max. Noice: 80(dB)
13) Gear: No gear ( automatic ), but WITH REVERSE GEAR
14) Dimension: 1625 x 860 x 960mm (L x W x H)
15) Wheel Base: 1050(mm)
16) Gross Weight: 145(Kg)
17) Dry Weight: 125(Kg)
18) Transmission Type: Chain drive
19) Tyre and Rim F.: 19*7-8 / R.: 18*9.50-8
20) Brake Style: F. Drum / R. Disc
21) Absorber Style F.: Independent Hanging / R.: Middle Absorber
22) Displacement: 149.5ml
23) Oiltank Capacity: 7.5(L)
24) Climbing Ability: ≥25"
25) Max. Load: 95(Kg)
26) Packing: 1485 x 835 x 780mm (L x W x H)
27) Conveyance:
Qty/20 FCL: 30 units
Qty/40 FCL: 63 units
